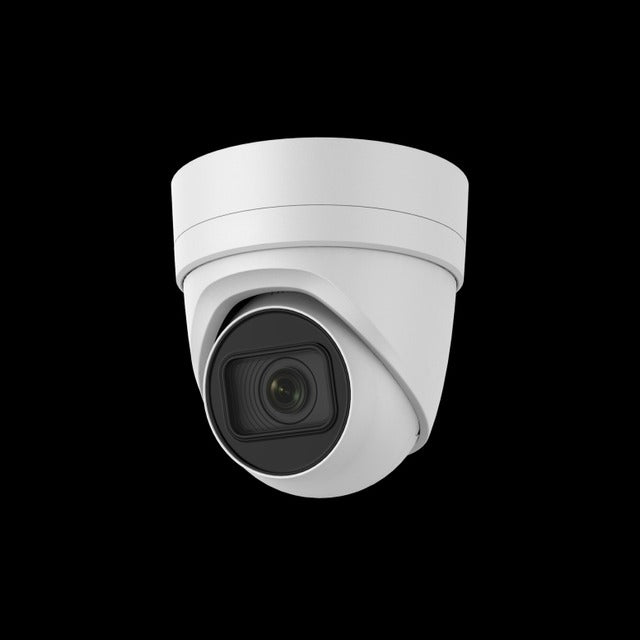

Hunt Electronics hnc324-xdz 4MP Turret Ip Camera Motorized

Product Description

The HUNT ELECTRONICS hnc324-xdz is a 4-megapixel motorized varifocal turret-style IP security camera designed for professional CCTV installations. It delivers 2688 x 1520 resolution through a motorized lens adjustable from 2.8 inches to 12 mm, allowing installers to dial in the field of view without physically repositioning the camera. True 120 dB wide dynamic range (WDR) manages challenging backlit scenes, while 3D digital noise reduction keeps image detail usable in low-light conditions. Built-in EXIR infrared illumination reaches up to 100 feet, and Power over Ethernet (PoE) support simplifies single-cable deployment. Security integrators and low-voltage technicians are the primary installers of this unit.

The hnc324-xdz is suited for outdoor perimeter surveillance, building entrances, parking structures, and commercial or light-industrial monitoring applications. The motorized varifocal lens makes it practical in installations where precise coverage zones must be set remotely through the camera's software interface rather than manual lens adjustment. IP67 weatherproofing makes it suitable for direct exposure to rain and dust. IK10 vandal resistance means the housing withstands repeated mechanical impact, appropriate for high-traffic or publicly accessible mounting locations.

Key Features

• 4MP resolution at 2688 x 1520 for high-detail video capture
• Motorized varifocal lens from 2.8 mm to 12 mm for remote zoom and focus adjustment
• 120 dB true wide dynamic range for accurate imaging in strong backlit scenes
• 3D digital noise reduction for clear low-light performance
• Built-in EXIR IR illumination effective up to 100 feet
• PoE support for single-cable power and data runs
• IP67 weatherproof and IK10 vandal-resistant housing for outdoor use

Compatibility

Designed as an OEM-style replacement or new-install option for professional IP-based CCTV systems supporting PoE-powered turret cameras.

Installation Notes

Installation should be performed by a licensed low-voltage technician or security systems integrator familiar with IP camera network configuration. Power down the PoE switch port before making cable connections. Use a structured Cat5e or Cat6 cable run within the distance limits of the PoE standard. Verify mounting surface integrity before securing the turret base, and seal cable entry points to maintain the IP67 rating.

Technical Specifications

• Resolution: 2688 x 1520 (4MP)
• Lens Type: Motorized varifocal
• Focal Length Range: 2.8 mm to 12 mm
• Wide Dynamic Range: 120 dB
• IR Illumination Range: Up to 100 feet
• Power Input: Power over Ethernet (PoE)
• Weather Protection: IP67
• Impact Resistance: IK10
• Noise Reduction: 3D Digital Noise Reduction

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hnc324-xdz
