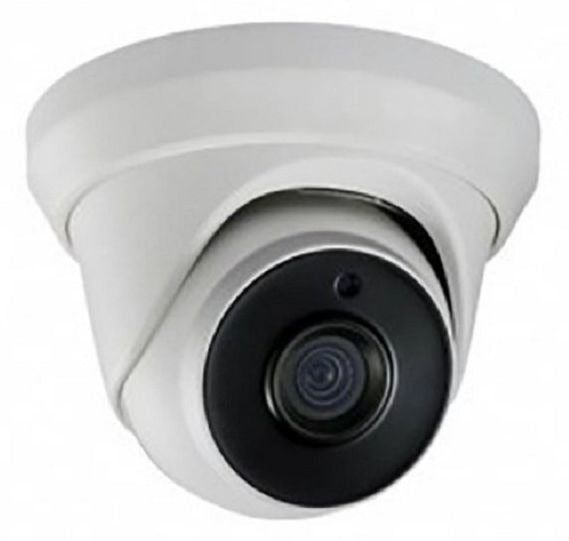

Hunt Electronics hac334-fd4m-3.6 Turret Camera 1080P

Product Description

The HUNT ELECTRONICS hac334-fd4m-3.6 is a 2-megapixel TVI turret camera designed for fixed surveillance installations. It delivers 1080P HD video output over coaxial cable using TurboHD signal transmission. The camera integrates EXIR infrared illumination for low-light and nighttime coverage. True Wide Dynamic Range (WDR) processing allows the sensor to handle high-contrast lighting conditions, such as entryways with mixed indoor and outdoor light. The metal housing provides durable protection in typical indoor and light commercial mounting environments. This unit is suited for installation by security technicians and licensed low-voltage contractors.

This camera is intended for use in residential and light commercial CCTV systems where analog HD over coax is the preferred infrastructure. The 3.6mm fixed lens provides a wide field of view appropriate for hallways, lobbies, and general-area monitoring. It connects to TVI-compatible DVRs and hybrid recorders that support 1080P analog HD input. The turret form factor allows the installer to adjust the camera angle within the housing after mounting, reducing the need for repositioning the base.

Key Features

• 2MP image sensor with 1080P HD resolution output
• TVI analog HD signal over standard coaxial cable
• EXIR infrared illumination for nighttime and low-light performance
• True WDR for high-contrast scene handling
• 3.6mm fixed focal length lens for wide-area coverage
• Metal housing construction for durability

Compatibility

Designed as an OEM-style replacement or addition for TVI-compatible analog HD surveillance systems accepting 1080P coaxial camera inputs.

Installation Notes

Installation should be performed by a qualified low-voltage security technician in accordance with applicable local codes and NEC Article 725 for Class 2 and Class 3 wiring. Power down the DVR or recorder before connecting camera cables. Use RG59 or RG6 coaxial cable with BNC terminations for signal runs. Verify DVR channel settings are configured for TVI input at 1080P resolution before commissioning the camera.

Technical Specifications

• Resolution: 1080P (2MP)
• Signal Format: TVI (TurboHD)
• Focal Length: 3.6mm fixed
• Dynamic Range: True WDR
• IR Illumination: EXIR
• Housing Material: Metal
• Camera Style: Turret

Standard Information

• Brand: HUNT ELECTRONICS
• Manufacturer Part Number: hac334-fd4m-3.6
