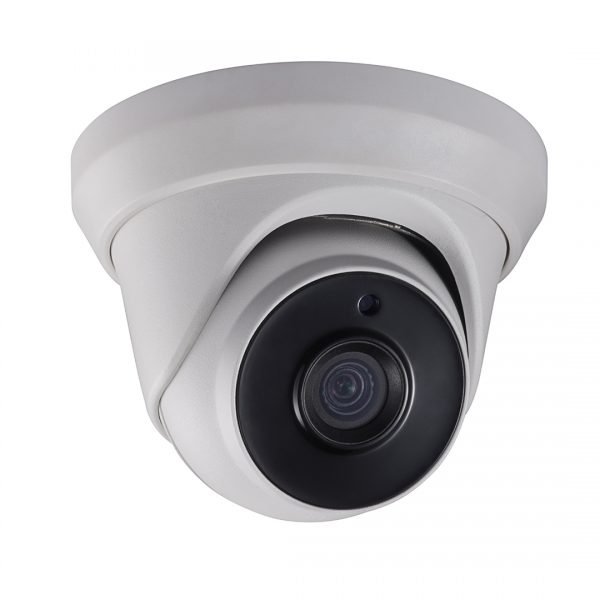

Hunt Electronics HAC318-FD4/2.8 ivms 4-in-1 8mp turbo hd outdoor turret camera

Product Description

The Hunt Electronics HAC318-FD4/2.8 is an IVMS 4-in-1 8MP Turbo HD outdoor turret camera, delivering high-resolution video output. It supports 4-in-1 video output (TVI, CVI, AHD, CVBS) and features true day/night functionality. Equipped with an OSD menu, 3D DNR, and Smart IR, this camera provides clear imaging up to 180ft IR distance via coaxial cable.

• 8MP Video Output
• 4-in-1 Video Output (TVI, CVI, AHD, CVBS)
• True Day/Night
• Up to 180ft IR distance
• OSD menu, 3D DNR, Smart IR
• Up the Coax(via coaxial cable)

Product Highlights

This outdoor turret camera offers versatile video output formats and excellent night vision capabilities, suitable for various surveillance applications.

Product Information

Standard Information

• Brand: Hunt Electronics
• Manufacturer Part Number: HAC318-FD4/2.8

Technical Specifications

• Model Number: HAC318-FD4/2.8
• Image Sensor: 8.29MP CMOS Sensor
• Video Format: PAL / NTSC
• Max resolution: 3840 x 2160
• Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
• Shutter speed: 1/15 s to 1/50,000 s
• Lens: 2.8mm
• Day & Night: ICR
• Synchronization: Internal synchronization
• Video Frame Rate: TVI: 15FPS @ 8MP, 20FPS @ 5MP, 30FPS @ 4MP CVI: 15FPS @ 8MP AHD: 20FPS @ 5MP
• HD Video Output: 1 Analog HD output
• Wide Dynamic Range: 105dB
• S / N Ratio: More than 52dB
• Scene: Indoor, Outdoor, Indoor1, LOW-LIGHT
• Camera ID: On/off (15 characters, position programmable)
• AGC: Support
• D/N Mode: Color/BW/EXT
• White Balance: ATW, AWC-SET, Indoor, Outdoor, Manua
• Privacy Mask: On/Off, maximum 2 zones
• Motion Detection: On/Off, maximum 4 zones
• BLC: Support
• Anti-flicker: On/off
• Language: English, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic
• Function: Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM
• Working Temperature / Humidity: -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing)
• Power Supply: 12 VDC
• Power Consumption: 12V DC: Max. 5.3W
• Weather Proof Ratings: IP67, IK10
• IR Range: Up to 180 ft
• Communication: Up the coax(need UTC controller) Protocol: Pelco-C(Coaxitron)
