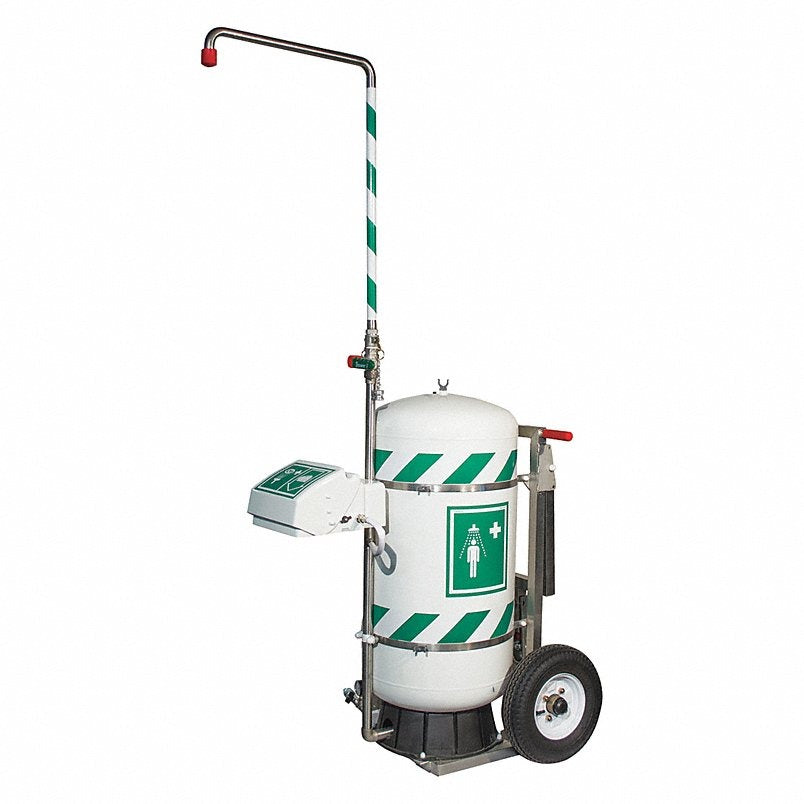

Hughes 40k45g Portable Safety Shower Eyewash 30 Gal

Product Description

The HUGHES 40k45g is a self-contained portable safety shower with an integrated eyewash station, designed for emergency decontamination in facilities where a fixed plumbed unit is not available. The unit draws from a pressurized 30-gallon polypropylene-lined carbon steel tank and delivers water through both a push-down lever-activated shower and a pull-knob-activated eyewash bowl. Flow rates range from 3 GPM minimum to 20 GPM maximum, providing sufficient volume to flush nuisance contaminants from the body and eyes. The eyewash bowl is constructed from acrylic-capped ABS plastic with a covered bowl design to reduce contamination between uses. This unit ships from USA-based manufacturing. Industrial safety professionals and facility safety managers are the primary installers.

The 40k45g is suited for use in industrial plants, chemical handling areas, laboratories, and outdoor job sites where permanent plumbing is impractical or unavailable. Its portable, freestanding design allows placement near hazard zones without construction or plumbing tie-ins. The water preservative media type extends tank water usability between maintenance cycles. The green and white color scheme follows standard safety equipment visual conventions. This unit is appropriate for both indoor and covered outdoor supplemental emergency response applications operating at temperatures at or above 32 degrees F.

Key Features

• Integrated eyewash station and safety shower in a single portable unit
• 30-gallon polypropylene-lined carbon steel tank for corrosion resistance
• Push-down lever shower activation and pull-knob eyewash activation for fast single-hand operation
• Covered acrylic-capped ABS eyewash bowl reduces between-use contamination
• Flow rate range of 3 GPM to 20 GPM supports full-body and eye flushing requirements
• Water preservative media type extends service interval between tank changes

Compatibility

Designed as a portable supplemental emergency eyewash and shower unit for industrial, laboratory, and job-site environments where fixed plumbed safety stations are not present or not accessible.

Installation Notes

Installation and placement should be performed by a qualified safety professional or facilities technician in accordance with ANSI Z358.1 emergency eyewash and shower equipment standards. Position the unit within 10 seconds of travel time from identified hazard areas per applicable safety regulations. Ensure the tank is filled and pressurized according to the manufacturer instructions before placing the unit in service. Inspect the covered eyewash bowl and verify activation mechanisms operate freely before each use period.

Technical Specifications

• Tank Capacity: 30 gallons
• Minimum Flow Rate: 3 GPM
• Maximum Flow Rate: 20 GPM
• Minimum Operating Temperature: 32 degrees F
• Weight Empty: 253.5 pounds
• Weight Full: 507 pounds
• Tank Material: Polypropylene Lined Carbon Steel
• Eyewash Bowl Material: Acrylic-Capped ABS Plastic
• Bowl Style: Covered
• Shower Activation: Push Down Lever
• Eyewash Activation: Pull Knob
• Media Type: Water Preservative
• Coverage: Eyes and Face
• Color: Green; White
• Installation Type: Portable
• UNSPSC: 46181810
• Country of Origin: USA (subject to change)

Standard Information

• Brand: HUGHES
• Manufacturer Part Number: 40k45g
