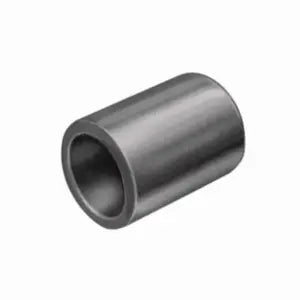

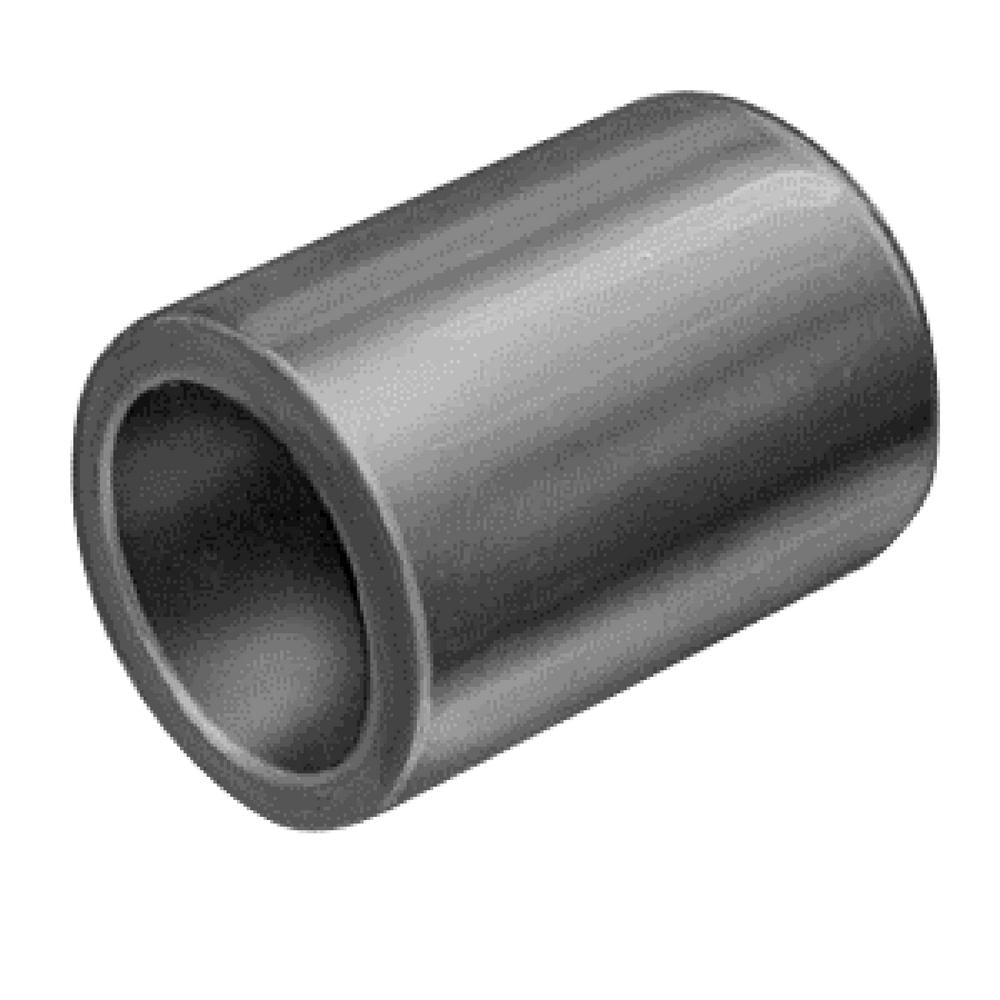

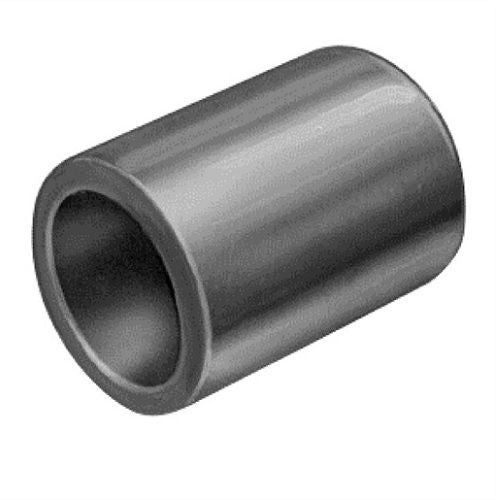

HUBBELL YSM1C Compression Parallel Splice

Product Description

The HUBBELL YSM1C is a compression parallel splice designed for stranded copper conductors, specifically suited for sizes ranging from sixty-six thousand eight hundred thirty-two to eighty-one thousand eight hundred seven kcmil, accommodating wires from one to two AWG. This product features a seamless, short barrel design that simplifies wire insertion due to a beveled edge. The splice has a tin-plated finish, which enhances conductivity and provides corrosion resistance. This configuration requires a single crimp for installation, making it user-friendly.

• Designed for stranded copper conductors from 66832 to 81807 kcmil.
• Beveled edge for easy wire entry.
• Tin-plated finish ensures durability and corrosion resistance.

Product Highlights

Easy to install with a single crimp, ideal for applications requiring reliable electrical connections.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: YSM1C

Technical Specifications

• Material: Copper
• Conductor Type: Copper Stranded
• Conductor Size: 1 to 2 AWG / 66832 to 81807 cmil
• Barrel Outer Diameter: 0.52 inches
• Length: 0.66 inches
• Finish: Tin Plated
• Type: Type YSM
• Wire Strip Length: 11/16 inches
• Standard & Approvals: CSA Certified, RoHS Compliant
• Country Of Origin: US
