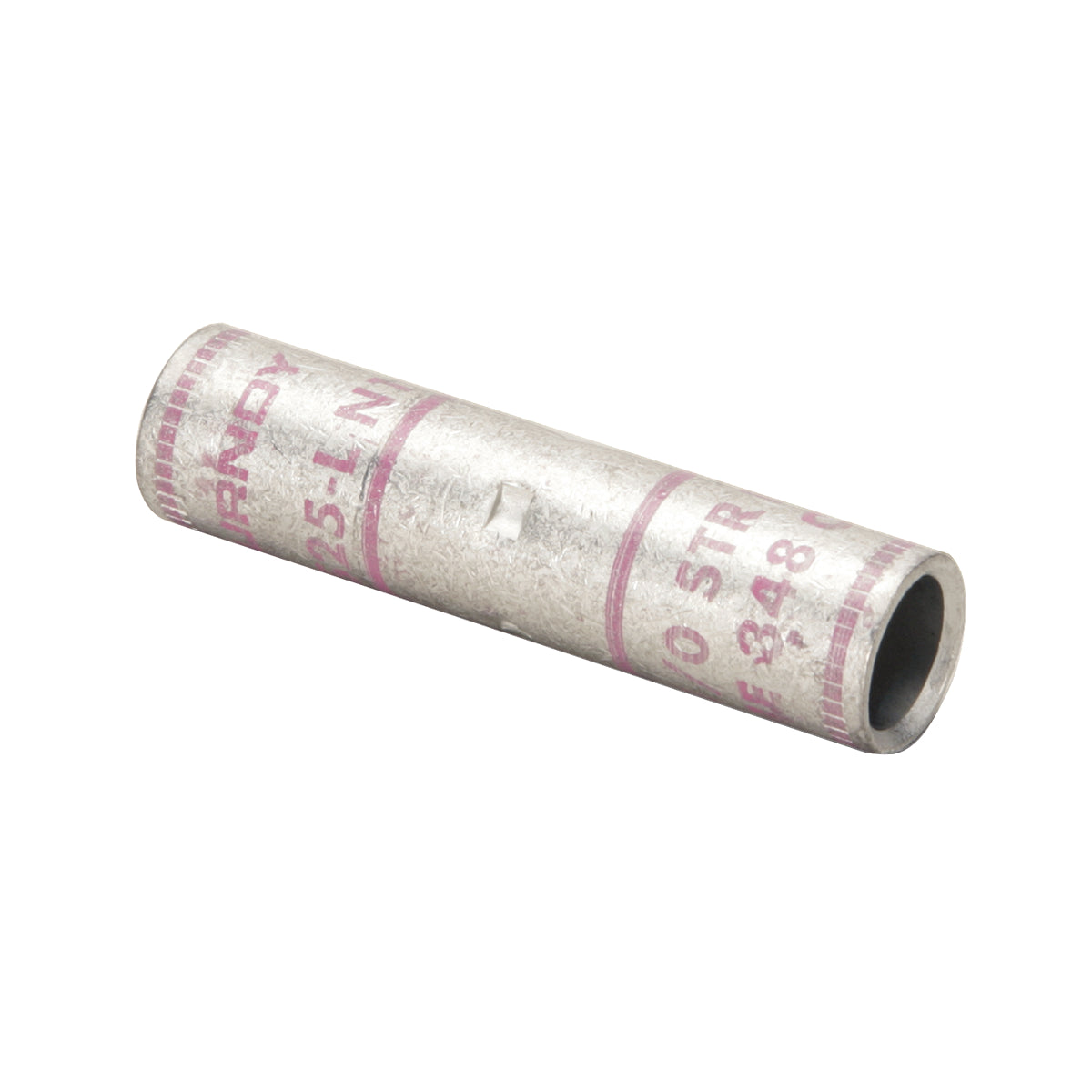

HUBBELL YS36L BURNDY HYLINK Butt Splice Compression Connector

Product Description

The HUBBELL BURNDY HYLINK YS36L is a high-quality compression butt splice designed for reliable connections in a variety of electrical applications. This product accommodates stranded copper conductors ranging from 250 to 600 kcmil and is ideal for limited space applications. The standard barrel design ensures a secure fit and excellent conductivity.

• Standard barrel compression butt splice for stranded copper conductors.
• Supports conductor sizes from 250 to 600 kcmil.
• Designed for use in environments with temperature conditions up to 90 degrees Celsius.

Product Highlights

This butt splice connector features a tin-plated copper construction with a green color coding for easy identification. It is constructed to meet industry standards, including ARRA, BAA, RoHS, and UL 486A-486B compliances. The conductor stop and chamfered barrel style offer easier wire insertion and reliable performance.

Product Information

Standard Information

• Length: 3.22 inches
• Barrel Size: 1.38 inches
• Color: Green
• Finish: Tin Plated

Technical Specifications

• Voltage Rating: 600 to 35000 VAC
• Temperature Rating: 90 degrees Celsius
• Die Index: 22/472
• Wire Strip Length: 1-7/16 inches
• Material: Copper
• Includes: Die sets and crimping tools compatible
