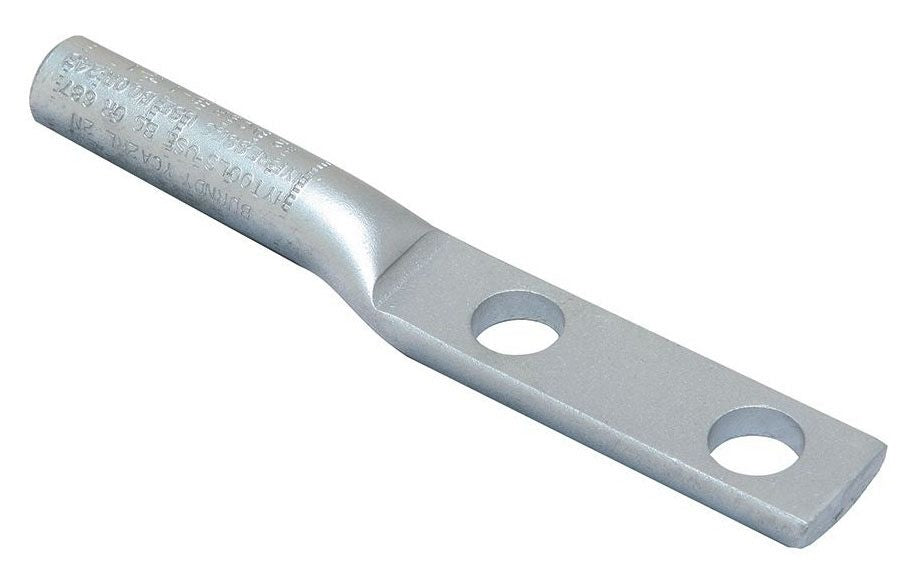

Hubbell YCA25R2N BURNDY 1/0 AL 2 HOLE LUG

Product Description

The Hubbell YCA25R2N is a 2-hole compression lug designed for ACSR conductors of size 1/0 AWG. This lug ensures reliable connections for various electrical applications, especially when terminating jumper loops and equipment taps at switch pads. The lug is made from aluminum and meets several compliance standards, making it suitable for different industrial needs.

• Aluminum construction
• Meets NEMA standards
• Compatible with full tension sleeves

Product Highlights

This compression lug is part of the YCA-R-N series, featuring an overall length of six point nineteen inches and a barrel size of zero point sixty-two inches diameter. The lug is designed with a half-inch mounting hole for easy installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181081046

Technical Specifications

• Application: For terminating jumper loops and equipment taps at switch pads
• Barrel Size: 0.62 inches OD x 2.39 inches L
• Conductor Size: 1/0 AWG
• Conductor Type: ACSR
• Die Code: 243/BG/8A/KS18/9A
• Material: Aluminum
• Mounting Hole Size: 1/2 inches
• Overall Length: 6.19 inches
• Standards/Approvals: ARRA Compliant, BAA Compliant, cUL Listed
• Tongue Size: 0.87 inches W
• Type: 2-Hole
