Hubbell YAV4CL5 Burndy Copper Compression Lug, Ring Tongue, 1 Hole w/ Inspection Hole

Product Description

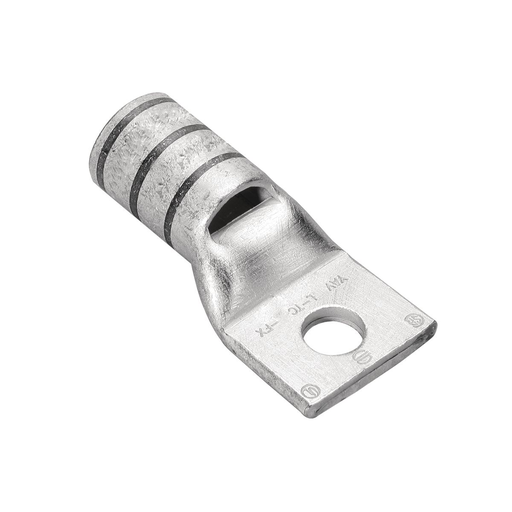

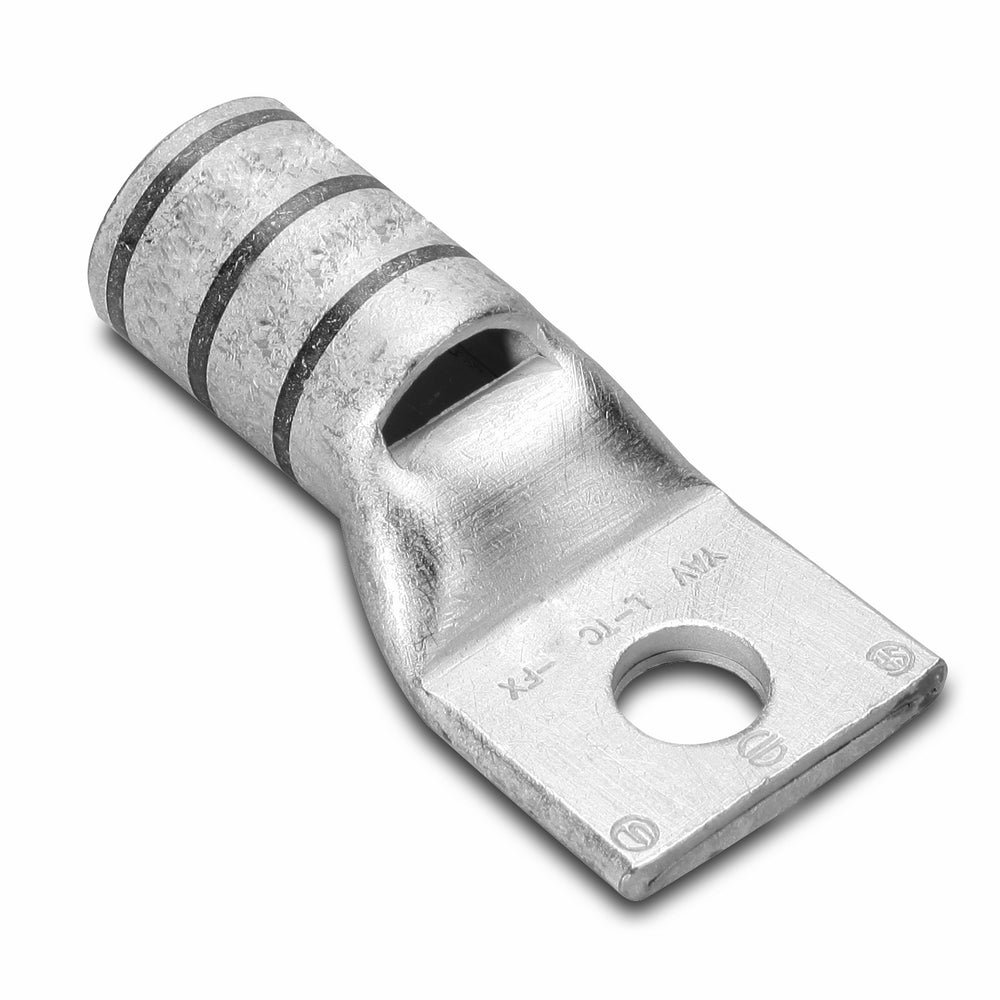

The Hubbell YAV4CL5 is a copper compression lug designed with a ring tongue and one hole that includes an inspection hole. It is suitable for AN-4 flexible conductors and 1/2 inch studs, making it versatile for various applications.

• Manufactured from seamless pure electrolytic copper for maximum conductivity.
• Internally bevelled barrel allows for easy cable entry.
• Inspection hole allows for quick visual checks of conductor insertion.

Product Highlights

This copper compression lug is ideal for several applications, including industrial, commercial, and electric utility installations where dependable electrical performance is crucial.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Sub Brand: Burndy

Technical Specifications

• Applications: For use on Type AN aircraft cable and extra flexible conductors.
• Cable Size: 4 AWG flex.
• Connection Type: Ring terminal.
• Material: Copper.
• Plated?: Yes.
• Plating Type: Tin - Electro Plated.
• Stud Size: 0.5 inches.
• Type: Ring tongue.
