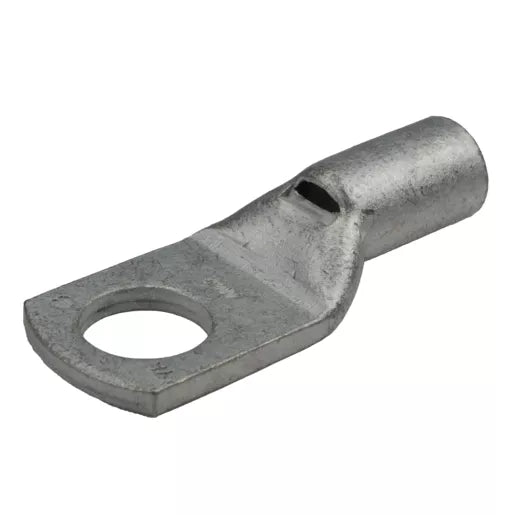

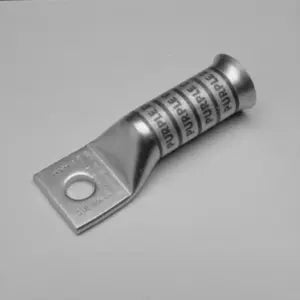

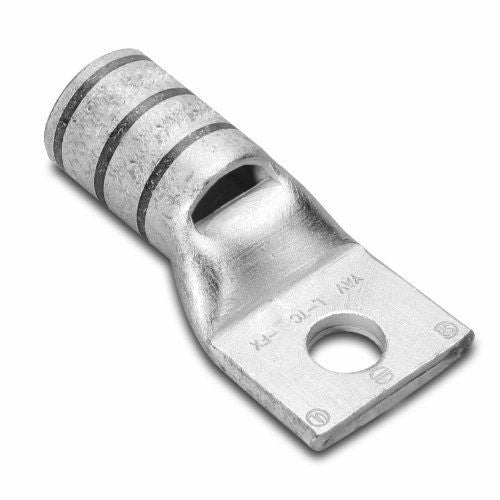

HUBBELL YAV28L Copper Compression Lug 1-Hole Ring Tongue

Product Description

The HUBBELL YAV28L is a copper compression lug designed for efficient electrical connections. This lug is made from electrolytic copper tubing which ensures good conductivity and ductility during crimping. It features a ring tongue with a single hole and an inspection hole for easy visual verification of the conductor insertion. The seamless tubular crimp barrel enhances reliability, while the electro-tin plating provides resistance to corrosion. It is ideal for use with flexible conductors.

• Designed for creating reliable electrical connections.
• Inspection hole allows for easy visual verification.
• Corrosion-resistant electro-tin plating ensures durability.

Product Highlights

The copper compression lug offers high conductivity, ease of installation, and long-lasting performance, making it suitable for various electrical applications.

Product Information

Standard Information

• Material: Tin Plated Copper
• Conductor Size: 4/0 AWG

Technical Specifications

• Stud Size: 3/8 inches
• Type: 1-Hole
• Tongue Style: Ring/Straight
• Overall Length: 2.95 inches
• Tongue Size: 1.23 inches Width
• Standard & Approvals: CSA Certified, RoHS Compliant, UL Listed
