HUBBELL YAV26L Copper Compression Lug 2/0 AWG 3/8 Stud 1-Hole

Product Description

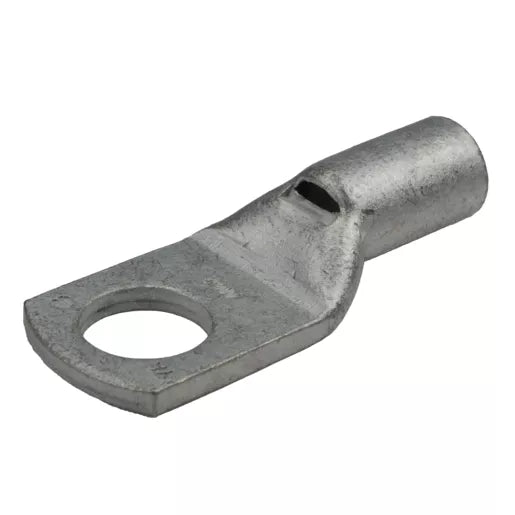

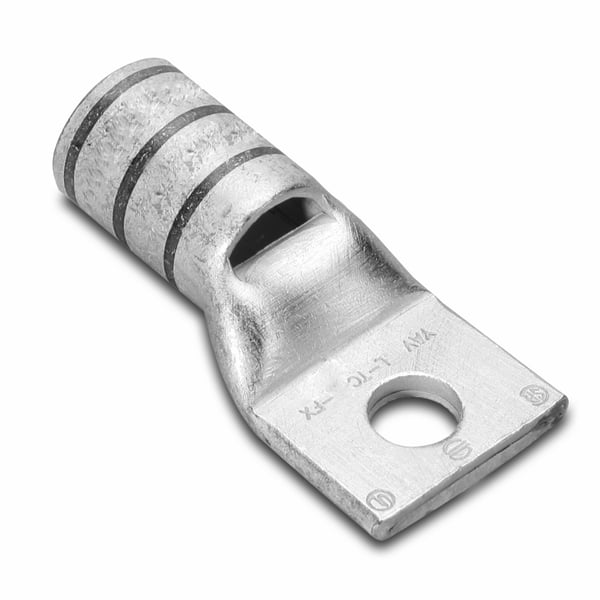

The HUBBELL YAV26L is a copper compression lug designed for effective electrical connections. This uninsulated lug is made of electrolytic copper, ensuring high conductivity. It is compatible with 2/0 AWG stranded copper conductors and AN aircraft cables. The lug features a 1-hole ring tongue and a short barrel, allowing for easy installation.

• Electro-tin plated for corrosion resistance.
• Inspection window for correct conductor placement.
• Double-thick tongue for enhanced durability.

Product Highlights

This compression lug is suitable for various applications, including industrial settings, hospitals, and electric utilities.

Product Information

Standard Information

• Brand: HUBBELL
• MPN: YAV26L

Technical Specifications

• Material: Copper
• Conductor Size: 2/0 AWG
• Stud Size: 3/8 in
• Type: 1-Hole Heavy Duty Non-Insulated
• Barrel Style: Short
• Tongue Style: Straight/Ring
• Voltage Rating: 600 VAC
• Application: Industrial, hospitals, electric utilities, marine, and mining
• Standard & Approvals: UL467, CSA Certified, SAE-AS7928, ROHS Compliant
• Overall Length: 2.31 in
• Die Code: 44
• Series: YAV-L
• Tongue Size: 0.93 in W
• Sub Brand: HYLUG
• Bolt Hole Size: 0.33 in
• Strip Length: 13/16 in
• Pad Width: 0.93 in
