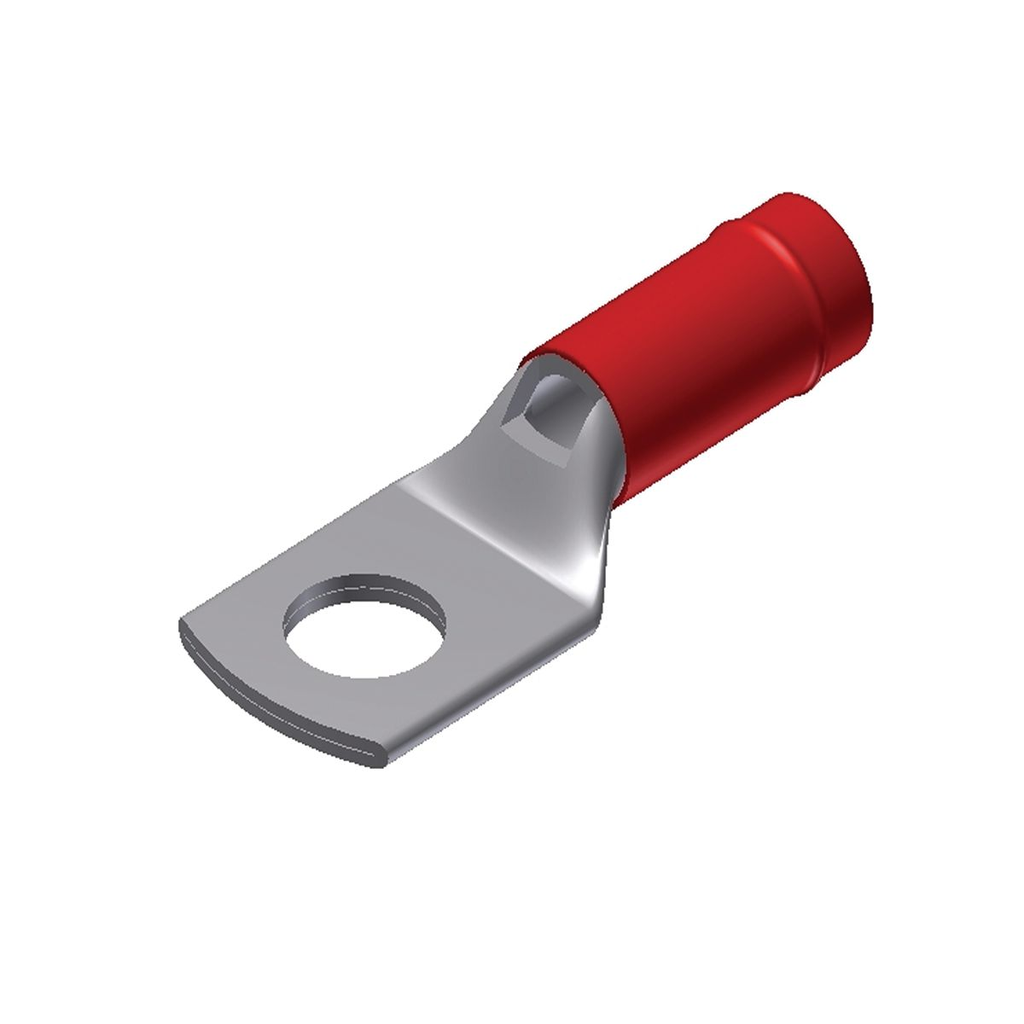

Hubbell YAEV8CL3 Nylon Ring Terminal For 8 AWG

Product Description

The Hubbell YAEV8CL3 is a nylon ring terminal designed for eight American Wire Gauge (AWG) connections. This terminal features a one-hole design with an inspection hole, allowing for reliable connections in various demanding applications, including those encountered in aircraft and ships. The terminal is insulated and has a short barrel construction, which enhances durability and performance.

• Suitable for high vibration environments in industrial and medical applications.
• Manufactured from pure electrolytic copper for optimal conductivity and low resistance.
• Rated for use at a maximum voltage of six hundred volts and a temperature of one hundred five degrees Celsius.

Product Highlights

This nylon insulated terminal offers robust protection against corrosion and ensures long-lasting performance in various settings.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Manufacturer: Burndy

Technical Specifications

• Type: YAEV-L, Heavy Duty
• Material: Copper
• Insulation Type: Nylon
• Voltage Rating: 600 V
• Stud Size: 0.375 in
• Overall Length: 1.54 in
• Width: 0.36 in
• Height: 0.57 in
