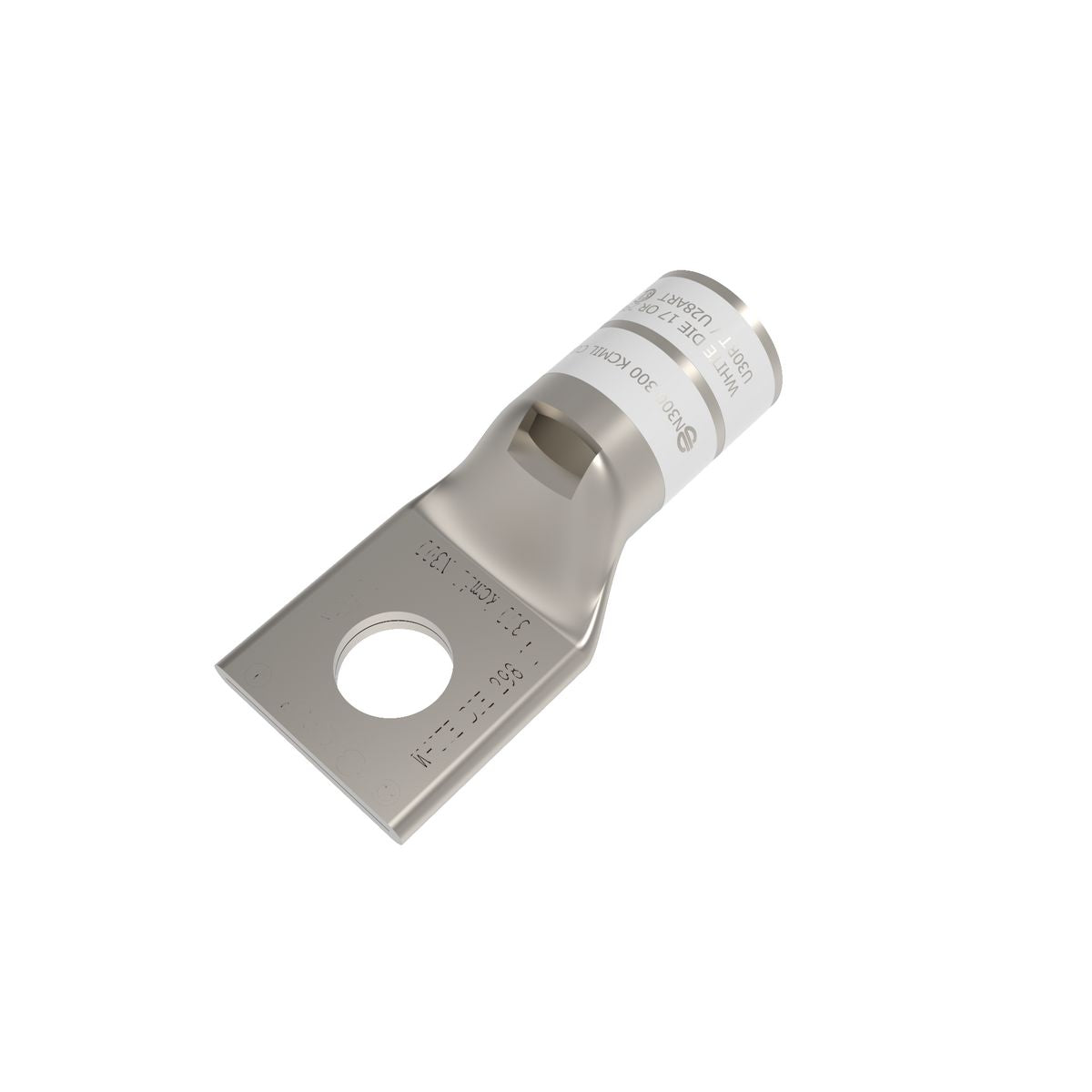

Hubbell YA30L BUR 1 Hole Comp Lug CU 300MCM / 300KCMIL W/ 1/2STUD HOLE

Product Description

The Hubbell YA30L is a reliable compression lug designed for use with stranded copper conductors. This compression lug is suited for applications up to thirty-five kilovolts. The one-hole design fits a half-inch stud and meets industry standards for secure and effective connections.

• Designed for 300 kcmil stranded copper conductors
• Temperature rated for ninety degrees Celsius
• UL and CSA certified for safety standards

Product Highlights

The YA30L compression lug provides a strong and durable connection in various electrical applications, including industrial and commercial settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA30L

Technical Specifications

• Application: For code conductor
• Conductor Size: 300 kcmil
• Voltage Rating: 600 VAC to 35 kV
• Overall Length: 2.69 inches
• Barrel Size: 0.81 inches OD x 1.03 inches L
• Stud Size: 1/2 inch
• Temperature Rating: 90 degrees Celsius
• Material: Copper
• Standards/Approvals: ARRA Compliant, CSA Certified, UL 467/467A/467B
