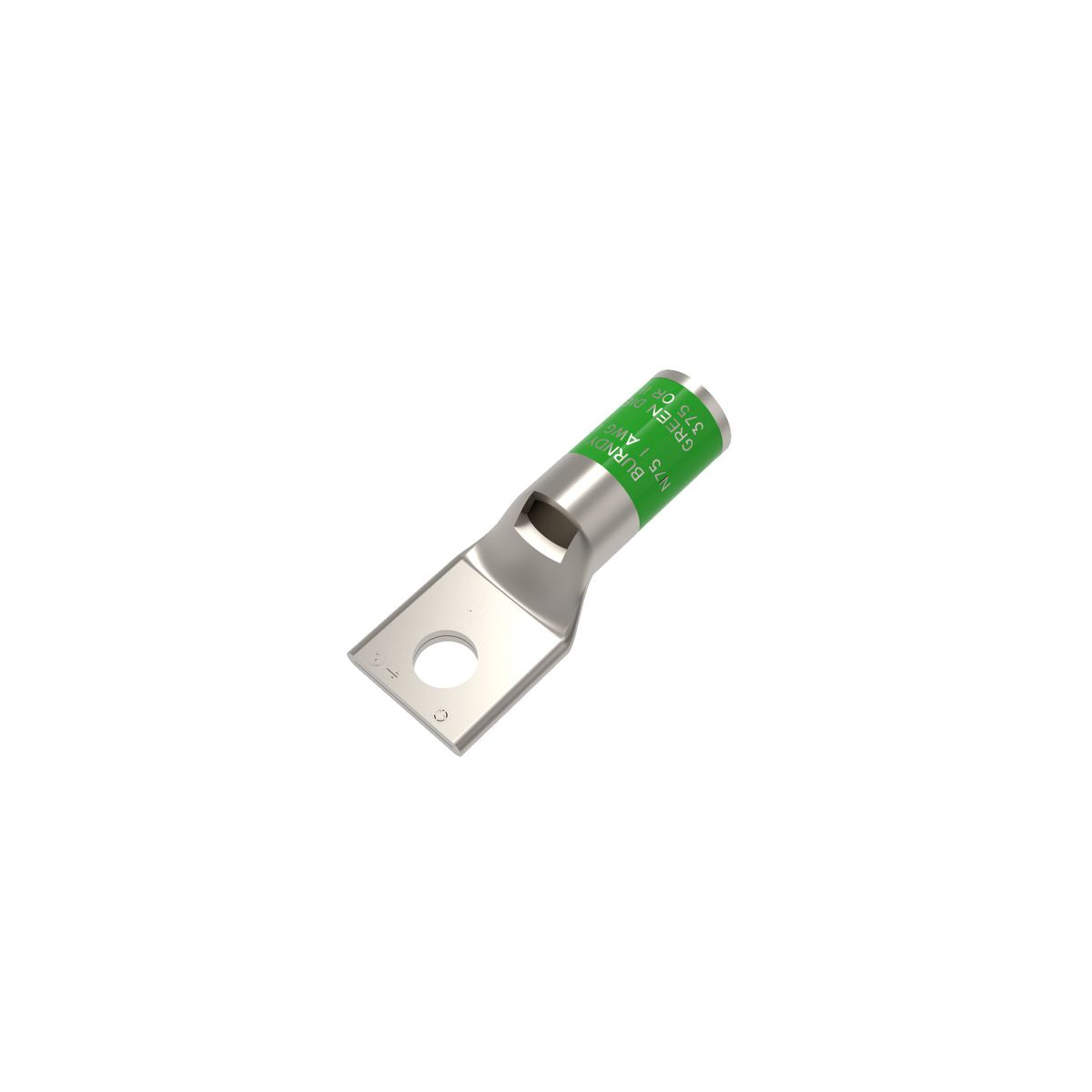

Hubbell YA1CLBOX YA-L 1-Hole Compression Lug 1 AWG Stranded Copper 5/16 in Stud

Product Description

The Hubbell YA1CLBOX is a reliable compression lug designed for electrical applications. This 1-Hole compression lug is suitable for 1 AWG stranded copper conductors, ensuring effective electrical connectivity. The lug has a tin-plated finish for improved corrosion resistance, making it suitable for various environments.

• Designed for 1 AWG stranded copper conductors
• Compatible with 5/16 inch stud size
• Temperature rated for 90 degrees Celsius

Product Highlights

This compression lug provides high conductivity and efficient thermal management, making it ideal for mechanical and electrical installation needs.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA1CLBOX

Technical Specifications

• Application: For code conductor
• Barrel Size: 0.88 in L
• Conductor Size: 1 AWG
• Conductor Type: Stranded Copper
• Die Code: 11
• Material: Copper
• Overall Length: 1.94 in
• Stud Size: 5/16 in
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 600 VAC to 35 kV
• Tongue Size: 0.68 in W x 0.1 in THK
• Tongue Type: Standard/Straight
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, CSA Certified, RoHS Compliant, UL 467/467A/467B
