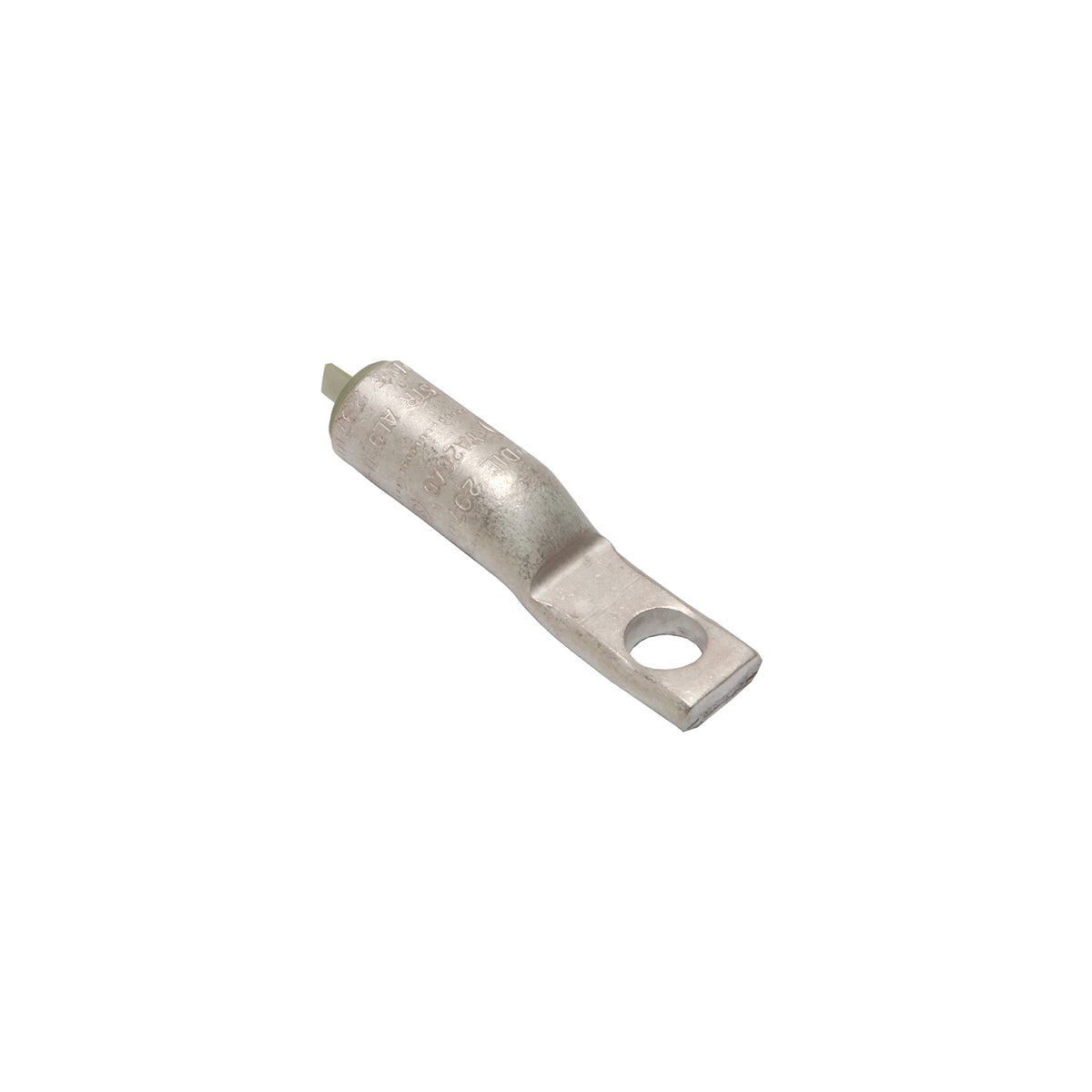

Hubbell YA1CA1 1AWG ALCU 1H LUG BURNDY

Product Description

The Hubbell YA1CA1 is a 1AWG aluminum and stranded copper compression lug designed for reliable and efficient electrical connections. This product is suitable for dual-rated applications and offers a robust performance range from six hundred volts alternating current to thirty-five thousand volts. The lug features a one-hole design and is manufactured from high conductivity, wrought aluminum for enhanced electrical performance.

• Manufactured with PENETROX oxide inhibiting compound
• Designed for aluminum and copper conductors
• Duplex rated for applications up to 35 kV

Product Highlights

This compression lug ensures consistent and high-quality connections across a variety of applications, providing durability and resistance to environmental factors.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Electro Plated Tin Aluminum

Technical Specifications

• Application: For aluminum and copper conductors
• Barrel Size: 0.91 inches length
• Color: Gold
• Conductor Size: 1 AWG
• Die Code: 471
• Overall Length: 2.59 inches
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 600 VAC to 35 kV
• Standards: ARRA Compliant, RoHS Compliant, UL 467/486B, CSA Certified
