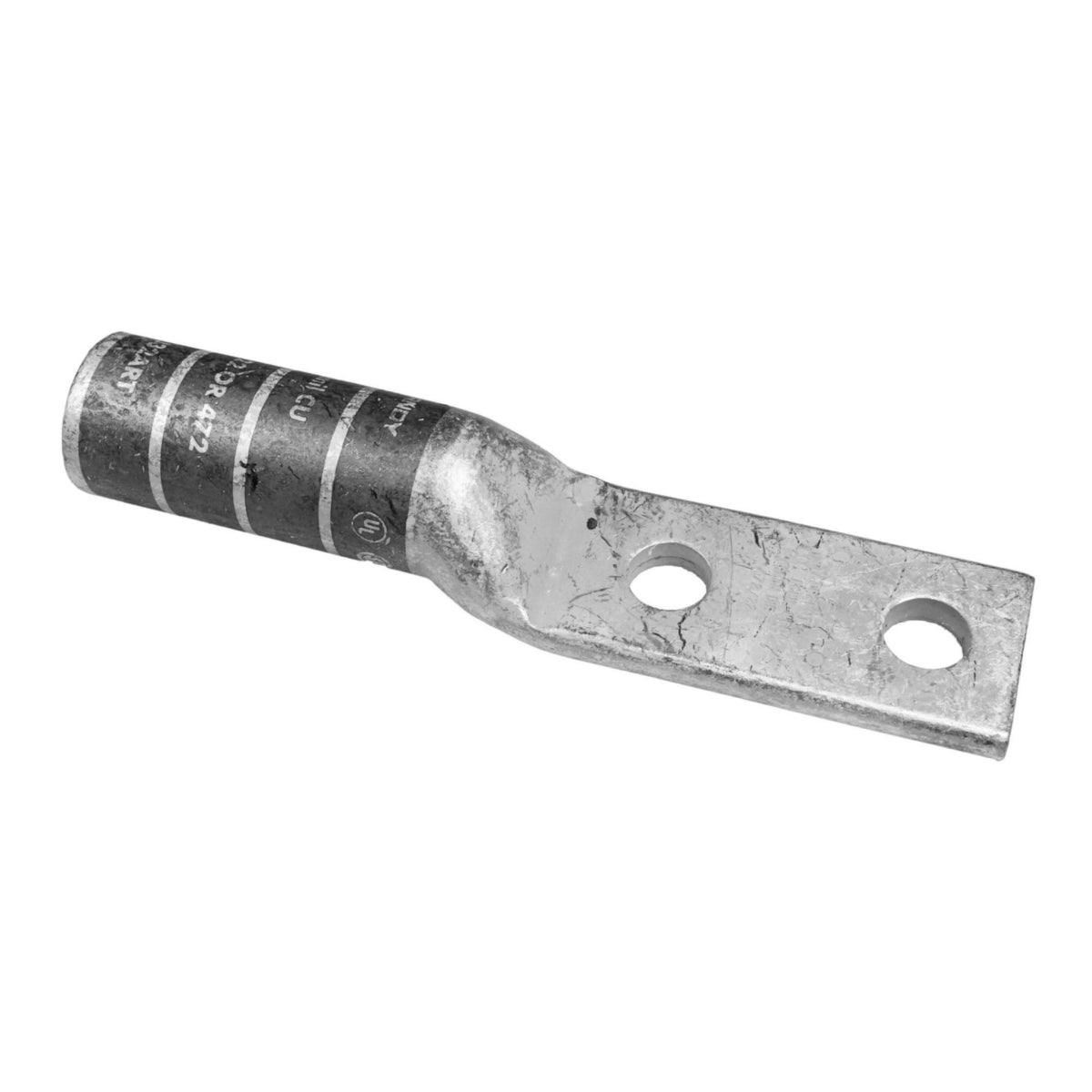

Hubbell YA1C2N Burndy 2 Hole Comp Lug 1Str Cu Long Nema

Product Description

Hubbell YA1C2N is a two-hole compression lug designed for connecting stranded copper conductors with a one AWG size. This product features a tin-plated copper design for enhanced conductivity and is compatible with various installation tools.

• Designed for 600 VAC to 35 kV applications
• Durable tin-plated copper construction
• Length of overall lug is four point eight two inches

Product Highlights

This compression lug is suitable for various electrical applications, ensuring reliable connections while withstanding high temperatures and environmental conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA1C2N

Technical Specifications

• Application: For code conductor
• Barrel Size: 1.38 in L
• Color: Green
• Conductor Size: 1 AWG
• Conductor Type: Stranded Copper
• Die Code: 11
• Includes: Tools for mechanical and hydraulic crimping
• Material: Tin Plated Copper
• Overall Length: 4.82 in
• Series: YA-2N
• Specifications: 1-7/16 in L Wire Strip, 1-3/4 in Hole Spacing
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 467, CSA Certified
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.83 in W x 0.12 in THK
• Tongue Type: Standard/Straight
• Type: 2-Hole
• Voltage Rating: 600 VAC to 35 kV
