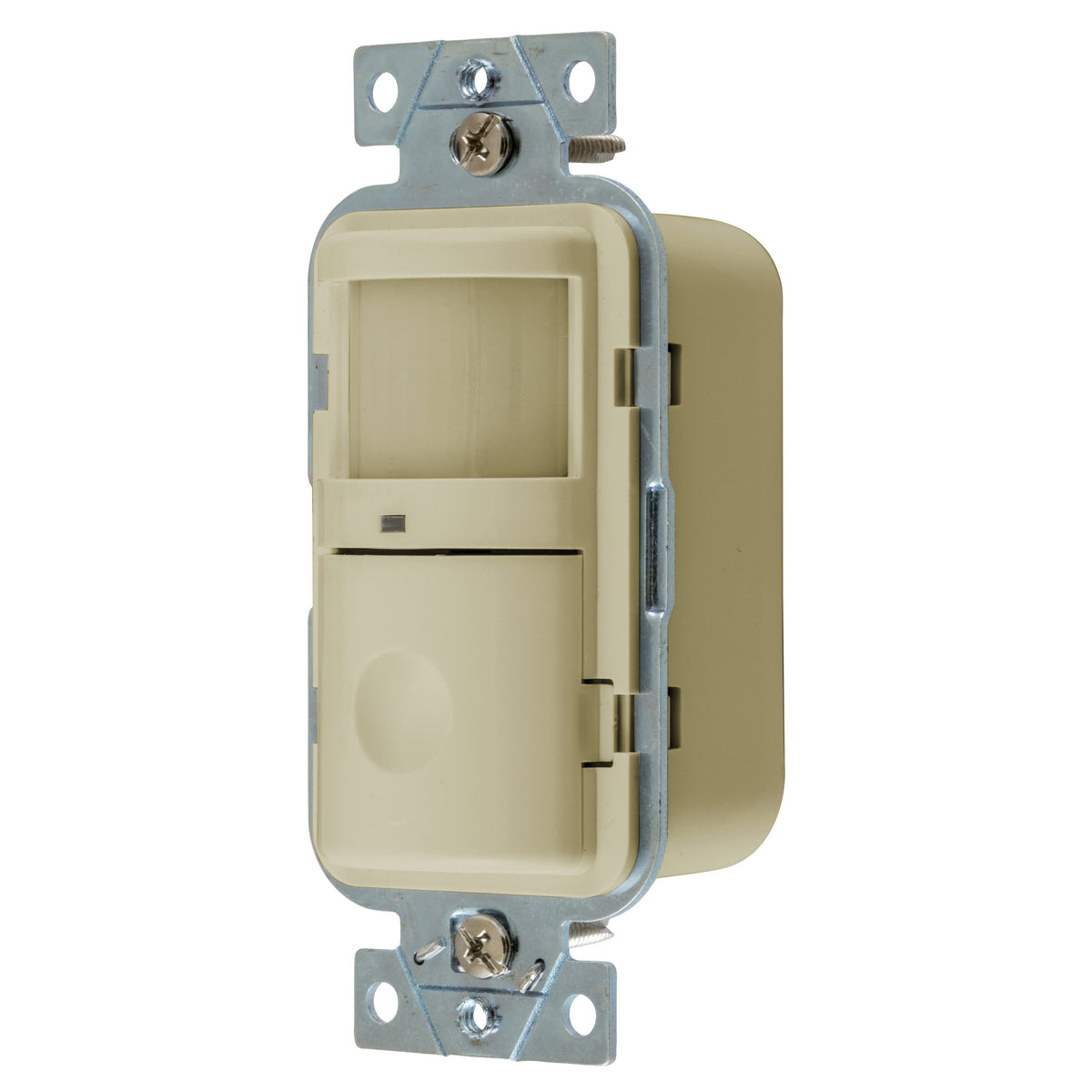

Hubbell WS2000I OCC/VAC Sensor, PIR, 120/277V, Ivory

Product Description

The Hubbell WS2000I is a wall-mounted occupancy sensor switch designed for use in various indoor environments. This device operates at 120/277 VAC and uses passive infrared technology to detect occupancy in spaces up to one thousand square feet. The sensor features a three-way adjustable design, offering flexibility for installation and optimal operation.

• Operates on 120 or 277 VAC circuits with no neutral required.
• Built-in photocell prevents lights from turning on during daylight.
• Includes a polyethylene lens for effective infrared sensing.

Product Highlights

This sensor is ideal for private offices, small restrooms, break areas, classrooms, and closets. It is suitable for both LED and CFL applications.

Product Information

Standard Information

• Brand: Hubbell
• MPN: WS2000I

Technical Specifications

• Type: 3-Way Adjustable
• Color: Ivory
• Coverage: 1000 sq-ft
• Dimensions: 1.82 in W x 1.62 in D x 4.15 in H
• Material: ABS
• Lamp Type: Incandescent
• Time Delay: 20 s to 30 min
• Power Rating: 120/277 VAC
• Viewing Angle: 180 deg
• Response Frequency: 60 Hz
• Temperature Rating: 32 to 122 deg F
• Mounting Type: Threaded
• Control Output: Automatic/Manual On
• Connection Type: Screw Terminal
• Standards: California Title 24 Compliant | cULus Listed | UL 773A | UL 94 V-0 Flammability Rated
