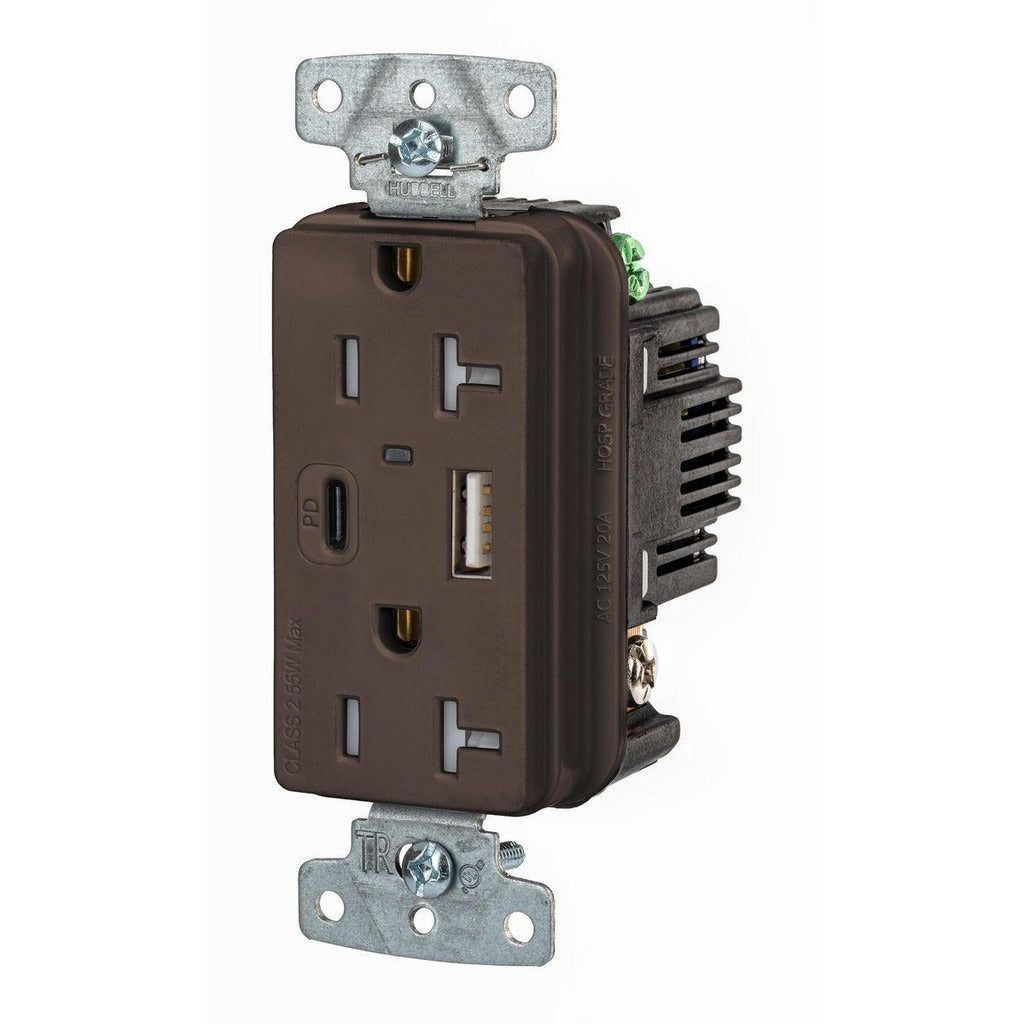

Hubbell Wiring Device-kellems USB20ACPD Usb Receptacle 20A

Product Description

The HUBBELL WIRING DEVICE-KELLEMS USB20ACPD is a commercial-grade duplex receptacle with integrated dual USB charging ports, designed for installation in standard outlet boxes. It carries a 20-amp, 125-volt rating with a NEMA 5-20R configuration and delivers up to 1.5 amps of USB charging current per port. The unit supports USB PD 3.0 and USB BC1.2 charging protocols, making it suitable for powering a wide range of devices directly at the outlet. Built with a thermoplastic housing and RTP receptacle material, it is installed by licensed electricians in commercial and light commercial wiring applications where integrated device charging is required at the outlet level.

This receptacle is intended for commercial-grade applications where a combination AC outlet and USB charging point is needed. The tamper-resistant mechanism meets NEC Section 406.9 requirements, making it appropriate for installations in facilities, offices, hospitality environments, and similar commercial settings where code-compliant tamper resistance is required. It mounts to a standard outlet box using screw mounting and accepts back wiring, side wiring, or terminal screw connections, giving installers flexibility in rough-in and finish work.

Key Features

• Dual USB charging ports with 1.5A output and USB PD 3.0 plus USB BC1.2 protocol support
• 20-amp, 125-volt NEMA 5-20R duplex receptacle configuration
• Tamper-resistant design meets NEC Section 406.9
• Power indicator light confirms live circuit status at a glance
• Multiple wiring options: back wiring, side wiring, and terminal screws
• Commercial-grade thermoplastic and RTP construction for durability in high-use environments

Compatibility

Designed as an OEM-style commercial replacement receptacle for standard outlet box installations requiring a NEMA 5-20R configuration with integrated USB charging capability.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify zero voltage with a meter before beginning any wiring work. The receptacle accepts back, side, and terminal screw wiring connections — follow the terminal markings and the manufacturer wiring diagram for correct polarity and grounding. Do not exceed the rated 20-amp circuit capacity.
