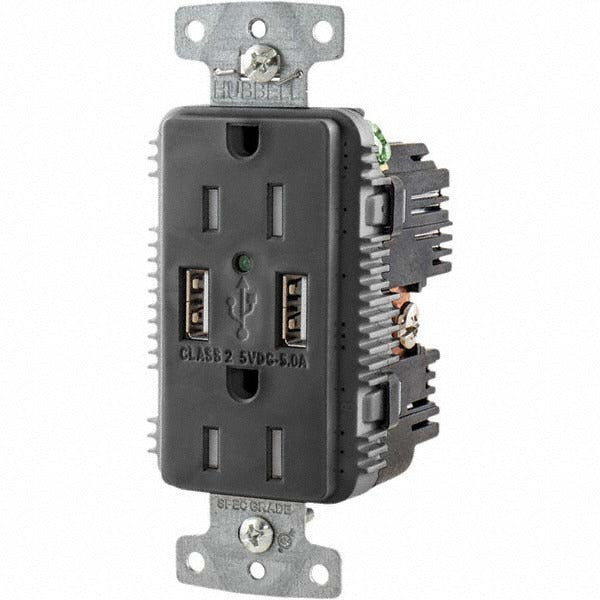

Hubbell Wiring Device-kellems USB15A5BK Usb Receptacle 15A

Product Description

The HUBBELL WIRING DEVICE-KELLEMS USB15A5BK is a commercial-grade, tamper-resistant duplex receptacle with two integrated USB charging ports. It provides a standard NEMA 5-15R outlet configuration rated at 15 amps and 125 volts AC while delivering 5.0 amps of USB charging power across its two Type-A ports. The built-in LED indicator confirms power status at a glance. Electricians install this receptacle in commercial and residential applications where both AC outlet access and direct USB device charging are required at a single wall location, eliminating the need for separate USB adapter blocks.

This receptacle fits standard single-gang wiring boxes and is suited for commercial office spaces, hotels, healthcare waiting areas, and multi-family residential units. The tamper-resistant shutter mechanism meets code requirements for installations in pediatric or child-accessible environments. Back and side wiring options give installers flexibility when working with existing or new branch circuit wiring.

Key Features

• Dual NEMA 5-15R outlets rated at 15 amps and 125 volts AC
• Two integrated USB Type-A ports with combined 5.0-amp charging output
• Tamper-resistant shutters for code-compliant installation in child-accessible spaces
• LED indicator light for quick power-status confirmation
• Supports back wiring and side wiring methods
• Commercial-grade thermoplastic construction with screw-mount design
• cULus Listed; meets UL1310 and UL498 standards

Compatibility

Designed as a direct-fit replacement for standard single-gang 15-amp receptacle locations in commercial and residential electrical systems wired to NEMA 5-15R configurations.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before removing the existing device or making any wire connections. Secure all conductors to the appropriate terminals before seating the device in the box, and verify the ground connection is continuous. Tamper-resistant receptacles are required by NEC in certain occupancy types; confirm local adoption of the applicable code cycle before selecting this device.
