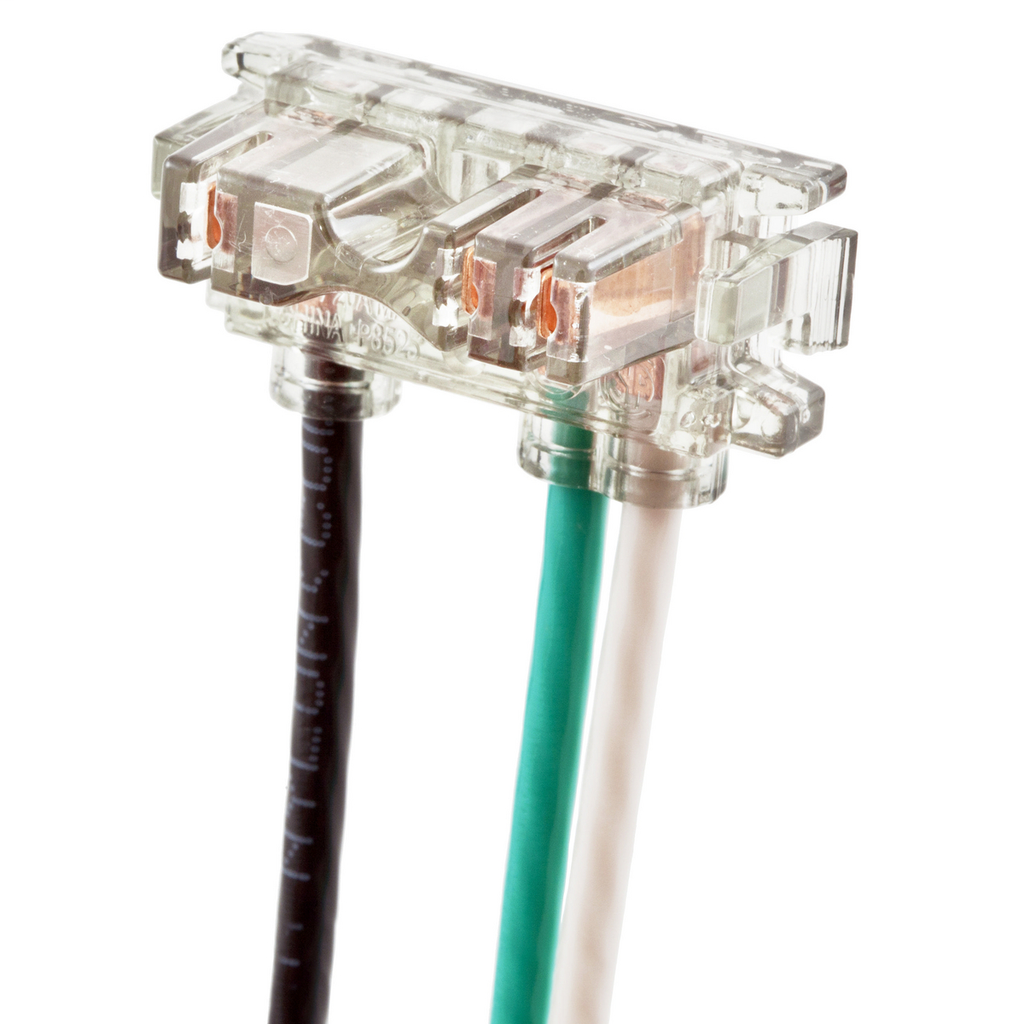

Hubbell Wiring Device-Kellems SNAP1RNA SnapConnect® 6 Solid Wire Conn, RA

Product Description

The Hubbell Wiring Device-Kellems SNAP1RNA is a SnapConnect® 6 solid wire connector designed for reliability in electrical connections. This right angle pigtailed connector supports a current rating of fifteen to twenty amps and operates at one hundred twenty-five volts. It is versatile for various applications such as quick connections in residential and commercial settings.

• Transparent housing allows for inspection of contacts
• Audible SNAP indicates solid connection
• Reduces installation time significantly

Product Highlights

This connector features a fully insulated design that enhances safety and durability in installation.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Type: Pigtailed Connector
• Wire Size: 12 AWG
• Current: 15-20 Amp
• Voltage: 125 Volt
• Weight: 0.05 lb
• Material: Polycarbonate
• Dimensions: 1.48 inches x 0.78 inches x 0.79 inches
• Operating Temperature: Maximum 75 degrees C, Minimum -40 degrees C
