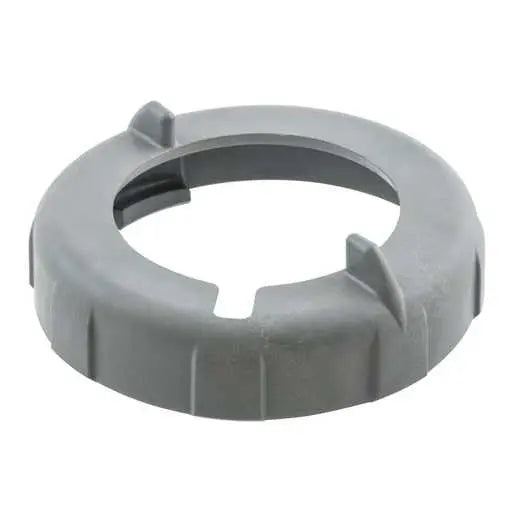

Hubbell Wiring Device-Kellems LR320 HWD 600 VAC Max Working Voltage Replacement Locking Ring

Product Description

The Hubbell Wiring Device-Kellems LR320 is a replacement locking ring designed for use with sixteen and twenty amp, three-wire plugs, connectors, and inlets, including IEC devices. This component is suitable for industrial applications and features a maximum working voltage of six hundred VAC RMS.

• Constructed from durable composite material
• Low profile design for connections where IEC configurations are needed
• IP67 ingress protection rating

Product Highlights

This locking ring is certified for current interrupting at full rated current and is ideal for use on circuits delivering a maximum of ten thousand RMS symmetrical amperes. It is also UL Listed, RoHS compliant, and CSA/IEC certified.

Product Information

Standard Information

• Type: Heavy Duty Industrial Grade Non-Metallic Replacement Standard Watertight
• Application: Industrial Applications

Technical Specifications

• Max Working Voltage: 600 VAC RMS
• Material: Composite
• Color: Gray
• Suitable For Use With: 16 and 20 A, 3-Wire Plugs, Connectors, and Inlets and IEC Devices
• Operating Temperature Range: -40 to 75 degrees Celsius
• Impact Resistance: UL 746C
• Dielectric Voltage: Withstands 3000 VAC
• Ingress Protection Rating: IP67
