Hubbell Wiring Device-Kellems L530R HWD Locking Receptacle 30A 125V NEMA L5-30R

Product Description

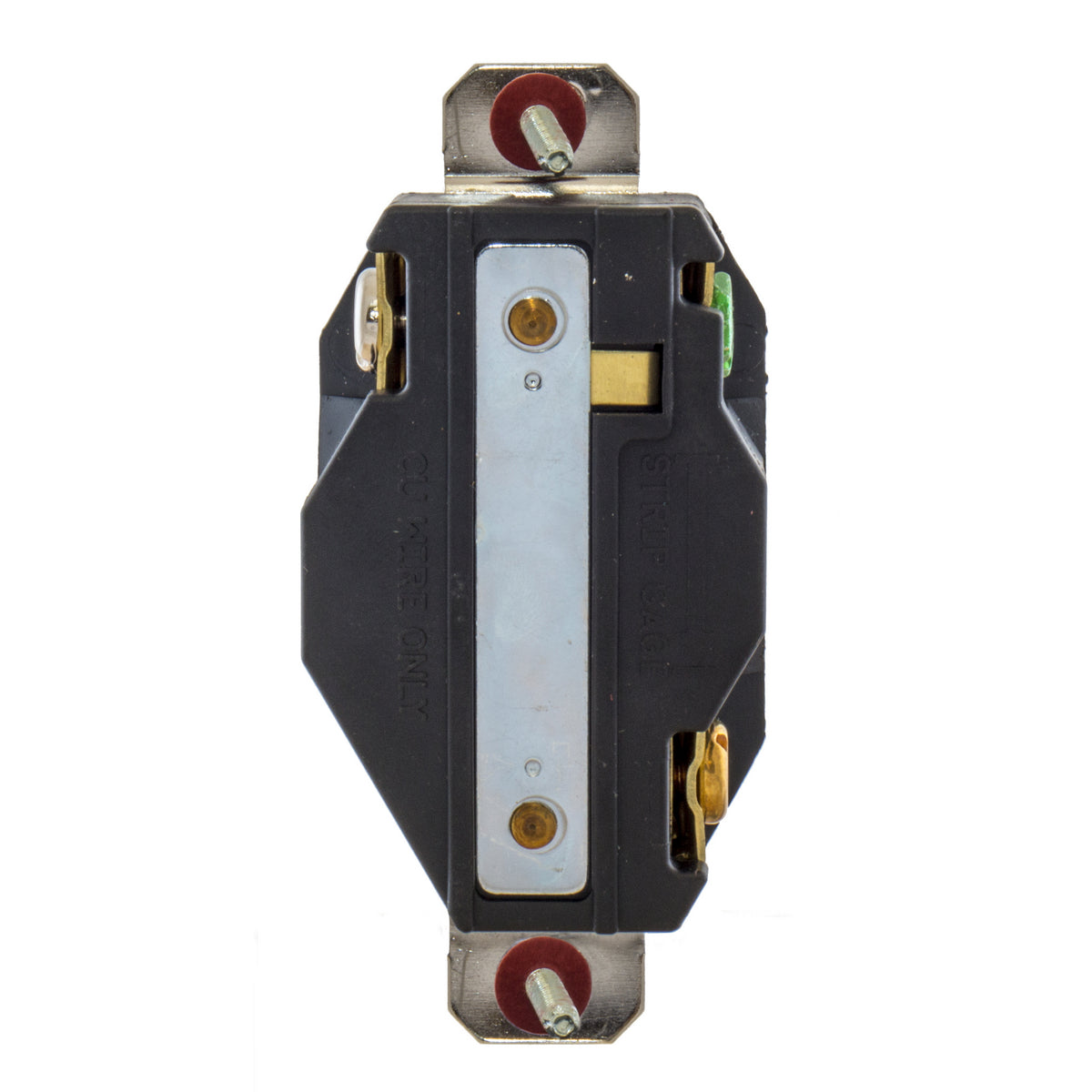

The Hubbell Wiring Device-Kellems L530R is a locking receptacle. This device is designed to withstand rigorous use in both commercial and industrial environments. It operates at a voltage of one hundred twenty-five volts and can handle a current of thirty amps. This receptacle features a screw terminal connection which is ideal for secure wiring applications.

• Rated for indoor dry use unless protected
• Robust housing made from thermoplastic material
• Compatible with NEMA L5-30R systems

Product Highlights

This device is essential for safe electrical connections in various applications including construction sites, industrial equipment, and MRO setups.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: L530R

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 85 degrees C
• Dimensions: 1.703 inches wide x 1.312 inches deep
• Material: Thermoplastic
• NEMA Rating: L5-30R
