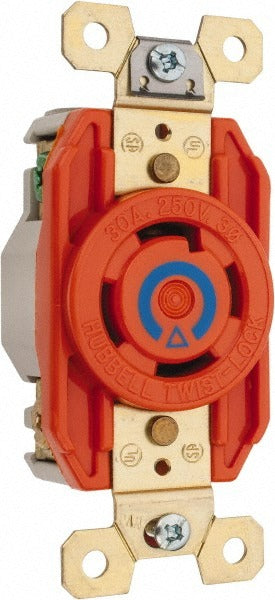

Hubbell Wiring Device-kellems IG2720 Receptacle 30A 250V

Product Description

The HUBBELL WIRING DEVICE-KELLEMS IG2720 is a self-grounding receptacle rated for 30 amps at 250 volts AC, configured to the NEMA 15-30R standard. It features a 3-pole, 4-wire design with a female end and is finished in orange for easy identification in isolated ground applications. The IG2720 is built for commercial and industrial electrical installations where isolated grounding is required to reduce electrical noise and protect sensitive equipment. Licensed electricians handle installation of this device in accordance with applicable NEC requirements.

This receptacle is suited for commercial, industrial, and light institutional settings where a dedicated isolated ground circuit is needed. The NEMA 15-30R configuration makes it a fit for 250-volt, 30-amp branch circuits serving equipment with isolation requirements. The orange color coding follows standard convention for isolated ground devices, aiding in circuit identification during service and inspection. It is packaged as a single unit.

Key Features

• Self-grounding isolated receptacle design reduces electrical noise on sensitive equipment circuits
• 30-amp, 250-volt AC rating for heavy-duty branch circuit applications
• NEMA 15-30R configuration with 3-pole, 4-wire female end
• Orange finish provides standard visual identification for isolated ground circuits
• Single-unit packaging suitable for individual outlet installations

Compatibility

Designed as an OEM-style isolated ground receptacle for 30-amp, 250-volt AC branch circuits wired to the NEMA 15-30R standard in commercial and industrial electrical systems.

Installation Notes

Installation must be performed by a licensed electrician in compliance with the National Electrical Code (NEC) and all applicable local codes. De-energize the branch circuit at the panel and verify with a meter before beginning work. Isolated ground receptacles require a dedicated insulated grounding conductor run back to the panel isolated ground bus. Do not share the isolated ground conductor with standard equipment grounding conductors.
