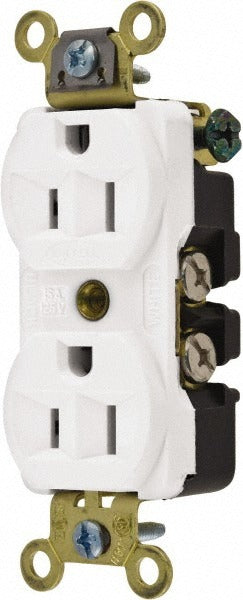

Hubbell Wiring Device-kellems HBL5252W Duplex Receptacle

Product Description

The HUBBELL WIRING DEVICE-KELLEMS HBL5252W is a specification-grade, straight blade duplex receptacle rated for 15 amps at 125 volts AC on a NEMA 5-15R configuration. Built with a nylon body, it delivers reliable resistance to corrosion, heat, and impact — making it a dependable choice for demanding commercial and industrial electrical installations. The self-grounding design simplifies installation by eliminating the need for a separate grounding clip between the device and the mounting yoke. Wiring is accepted via both back and side terminals, giving electricians flexibility on the job.

This duplex receptacle is suited for flush-mount installation in standard single or multi-gang outlet boxes. It is appropriate for use in commercial buildings, institutional facilities, light industrial environments, and any application where specification-grade performance is required over residential-grade devices. The white finish integrates cleanly with standard wallplates. Single-phase, two-pole, three-wire wiring applies.

Key Features

• Specification grade construction for commercial and industrial duty
• NEMA 5-15R configuration — 15 amps, 125 volts AC, two-pole, three-wire
• Self-grounding yoke eliminates need for a separate grounding clip
• Back and side wiring terminals for installation flexibility
• Nylon body rated for corrosion, heat, and impact resistance
• Flush mount design for standard outlet box installation

Compatibility

Designed as a specification-grade flush-mount duplex receptacle compatible with standard NEMA 5-15R applications in single or multi-gang electrical outlet boxes.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always de-energize the circuit at the breaker panel and verify with a non-contact voltage tester before beginning work. Both back-wire and side-wire terminal options are available — do not exceed the receptacle's 15-amp rating when sizing the circuit. Secure the device firmly to the outlet box using the mounting yoke before attaching the wallplate.
