HUBBELL WIRING HBL4792
HUBBELL WIRING Hubbell Wiring Device-Kellems HBL4792 HWD Combination Duplex Grounding Receptacle 125 VAC 15 A
HUBBELL WIRING Hubbell Wiring Device-Kellems HBL4792 HWD Combination Duplex Grounding Receptacle 125 VAC 15 A

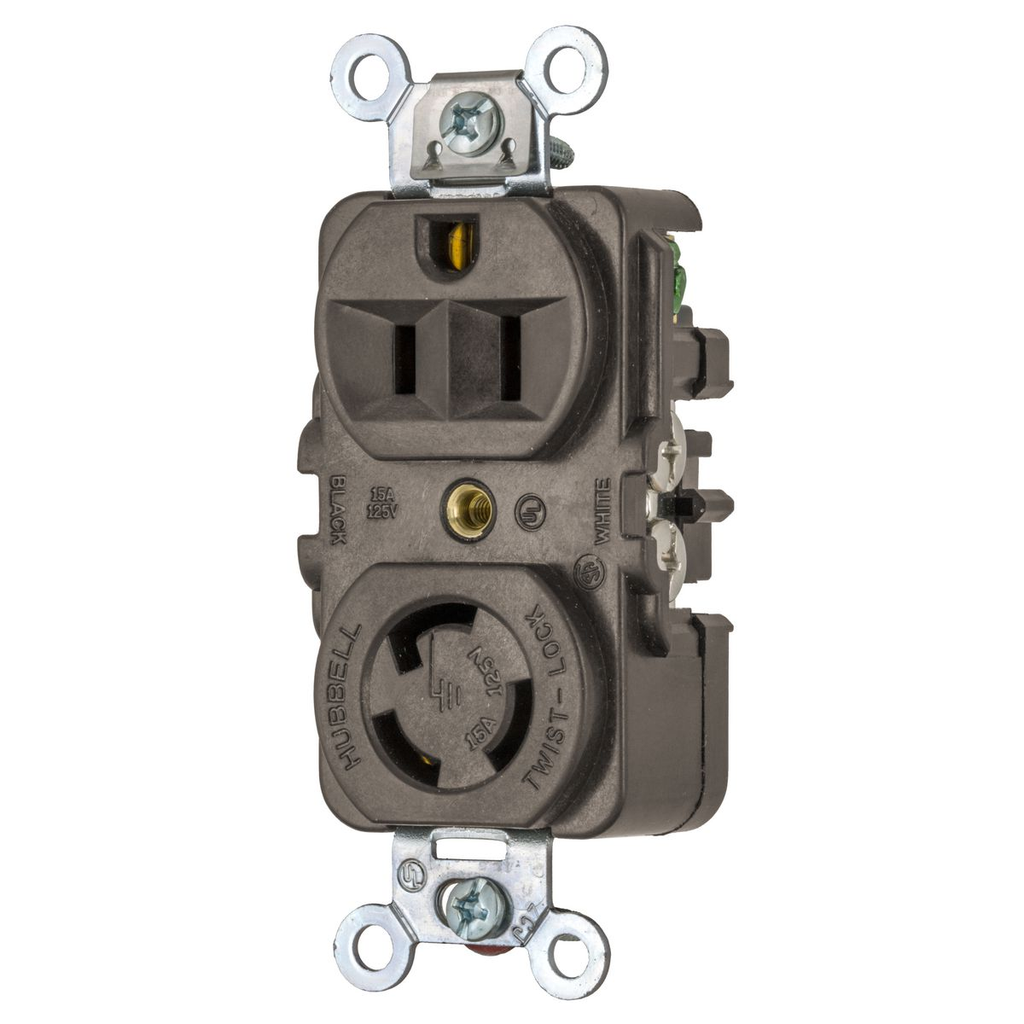

Hubbell Wiring Device-Kellems HBL4792 HWD Combination Duplex Grounding Receptacle 125 VAC 15 A

SKU: HBL4792
Availability: Out Of Stock
Manuals:
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

Hubbell Wiring Device-Kellems HBL4792 is a heavy-duty locking receptacle designed for industrial applications. It operates at one hundred twenty-five volts and has a fifteen amp capacity. This receptacle features a combination duplex grounding and is suitable for various electrical connections.

  • Industrial grade construction for reliable performance.
  • NEMA 4X/12 enclosure for protection against dust and moisture.
  • Temperature rated from negative forty to seventy-five degrees Celsius.

Product Highlights

The HBL4792 is built for durability and reliability in demanding environments.

Product Information

Standard Information

  • Brand: Hubbell Wiring Device-Kellems
  • Manufacturer: Hubbell Wiring Device-Kellems
Technical Specifications
MPN
HBL4792
Voltage Rating
125 VAC
Amperage Rating
15 A
Horsepower
1/2 hp
Number of Poles
2
Number of Wires
3
Material
Thermoplastic/Composite
Dimensions
3.28 x 1.5 x 0.88 in
NEMA Rating
5-15R/L5-15R
Temperature Rating
-40 to 75 degrees Celsius
Enclosure
NEMA 4X/12/IP20
Terminal Type
Screw
