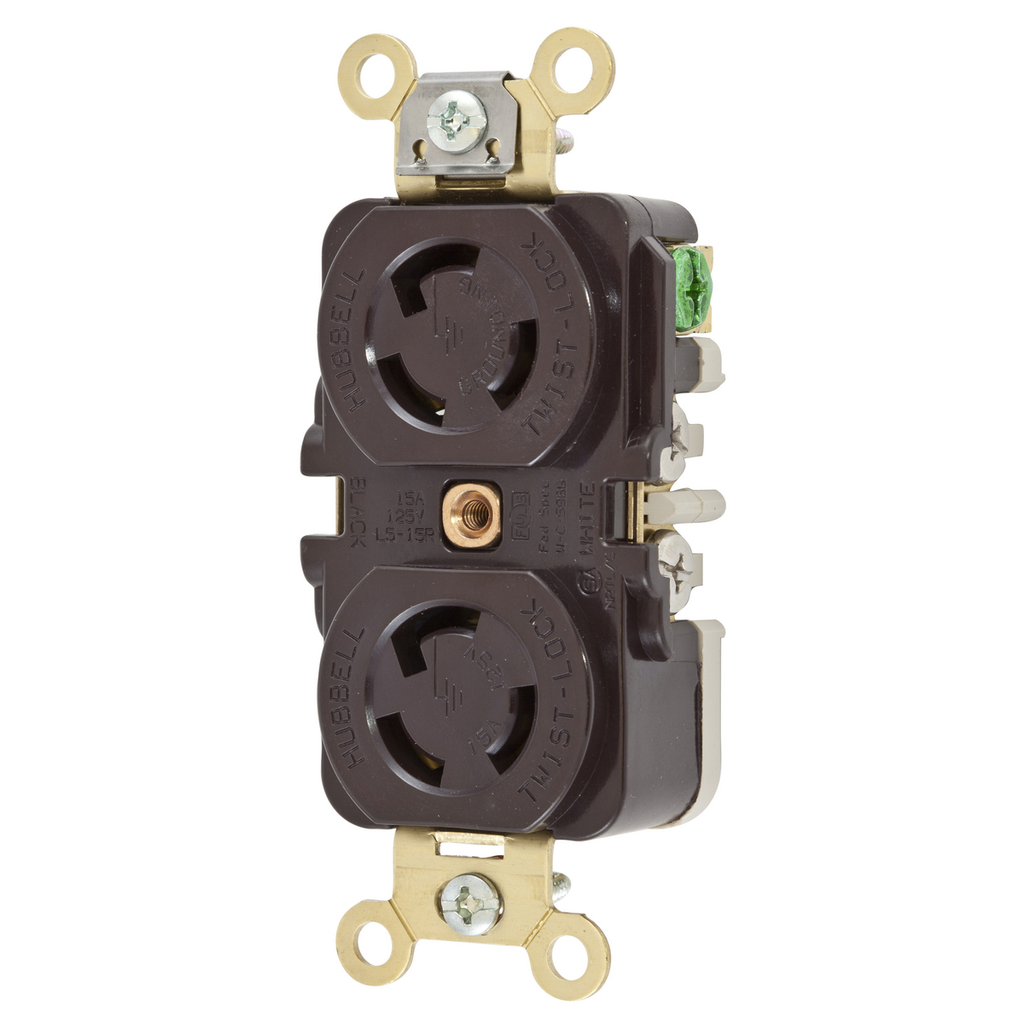

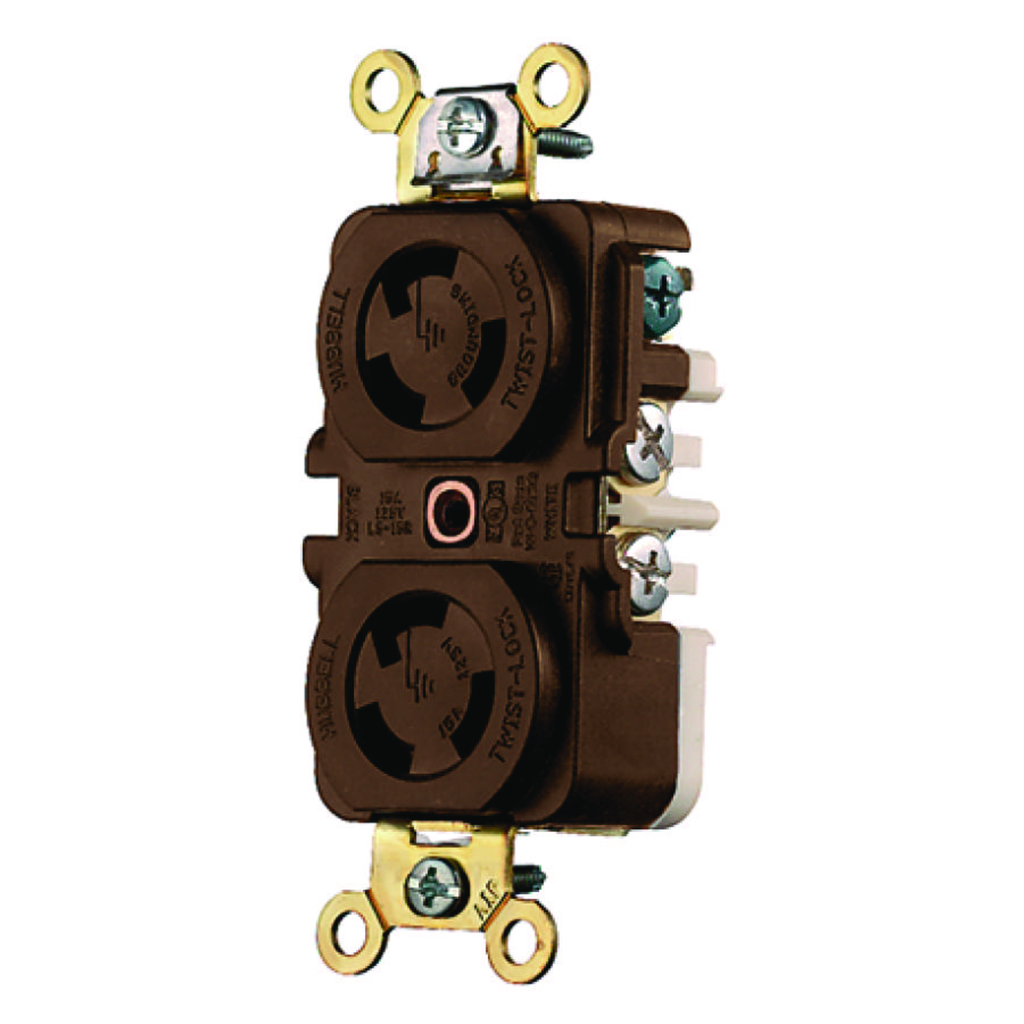

Hubbell Wiring Device-Kellems HBL4700 15A 125V Twist-Lock Brown Duplex Receptacle

Product Description

The Hubbell HBL4700 is a twist-lock duplex receptacle designed for industrial use. This product operates at fifteen amps and one hundred twenty-five volts, making it suitable for heavy-duty applications. The receptacle features a NEMA L5-15R configuration with a screw terminal for secure connections.

• Durable thermoplastic construction
• Standard mounting type with screw flush
• Self-grounding feature for added safety

Product Highlights

This receptacle is ideal for various industrial applications, providing reliable power and safety in environments where strong connections are essential.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Material: Thermoplastic

Technical Specifications

• MPN: HBL4700
• Current Rating: 15 Amp
• Voltage Rating: 125 Volt

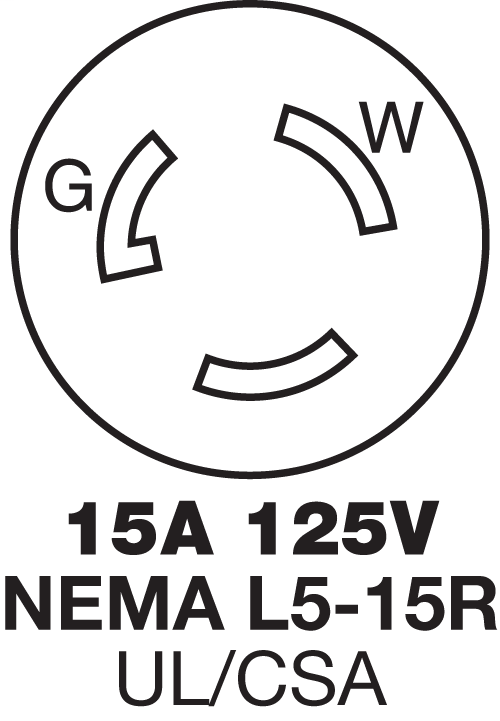

• NEMA Rating: L5-15R
• Dimensions: 3.29 inches (L) x 1.8 inches (W) x 1.17 inches (H)
• Weight: 0.25 lb
• Wire Size: 18-10 AWG
• Number of Poles: 2
• Number of Wires: 3 Wire Grounding
• Dielectric Strength: Withstands 2,000V minimum
• Operating Temperature: -40 degrees C
• Certifications: CSA C22.2 No.42, UL 498
