Hubbell Wiring Device-Kellems HBL3032I Toggle Switch Extra Heavy Duty 30 Amp 120/277 VAC 2-Pole Replacement MPN

Product Description

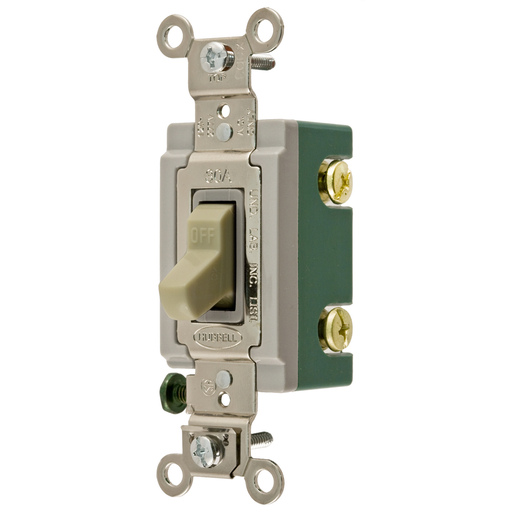

The Hubbell Wiring Device-Kellems HBL3032I is an extra heavy-duty toggle switch designed for general purpose applications. This switch can operate within a voltage range of 120 to 277 VAC and supports a maximum power rating of eight thousand three hundred ten watts. The product features a double pole configuration with a two-position contact system, making it suitable for various heavy-duty industrial uses.

• Operating Voltage: 120 to 277 VAC
• Amperage: 30 A
• 50000 operating cycles

Product Highlights

This toggle switch is ideal for indoor dry environments and can handle significant electrical loads, making it a dependable choice for industrial applications.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• MPN: HBL3032I
• Contact Configuration: Two Position
• Number of Poles: 2
• Environmental Conditions: Indoor Dry unless protected by additional means
• Operating Temperature: Maximum continuous seventy-five degrees Celsius and minimum forty degrees Celsius
• Material: Thermoset
• Size: Four point zero six inches x one point three one inches x one point eight seven inches
