Hubbell Wiring Device-Kellems HBL28W76 HWD 30 Amp 480 Volt 3-Pole 4-Wire NEMA L16-30P

Product Description

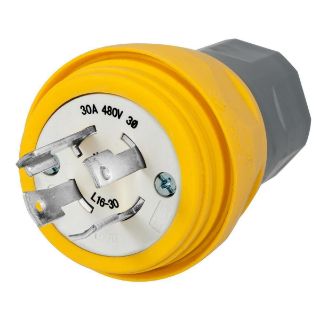

This product is the Hubbell Wiring Device-Kellems HBL28W76, a locking plug designed for 3-phase grounding applications. It operates at 480 VAC and has a current rating of 30 A. The plug features a watertight design suitable for both commercial and industrial use. It is compatible with cords that have a diameter ranging from three-eighths to one inch.

• Durable thermoplastic elastomer construction
• Suitable for outdoor and industrial environments
• Standard NEMA L16-30P rating

Product Highlights

This locking plug helps ensure secure connections in various electrical setups, especially in challenging conditions. The product is built to last and maintains functionality in temperatures from minus forty to sixty degrees Celsius.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL28W76

Technical Specifications

• Voltage Rating: 480 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4

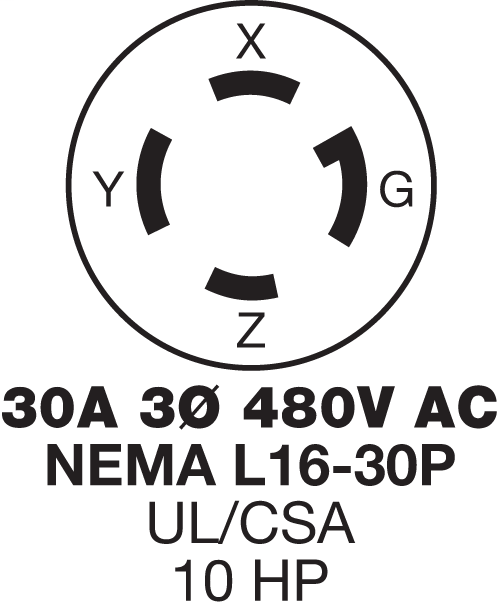

• NEMA Rating: L16-30P
• Horsepower Rating: 10 hp
• Temperature Rating: -40 to 60 degrees C
• Enclosure Rating: NEMA 4/4X/6/6P/12
