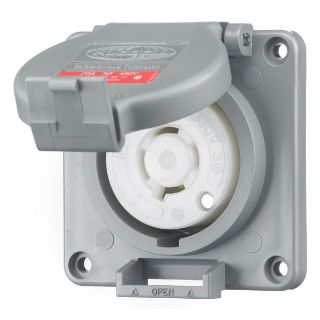

Hubbell Wiring Device-Kellems HBL2430SW HWD 3-Phase Grounding Heavy Duty Flanged Locking Receptacle

Product Description

The Hubbell Wiring Device-Kellems HBL2430SW is a twist-lock receptacle designed for heavy-duty applications. It supports three-phase power and is rated for four wires. This receptacle is built for safety and durability, making it suitable for industrial use.

• Rated for 480 VAC, 20 A, making it ideal for robust electrical applications.
• Features a watertight safety-shroud design for reliable performance in harsh conditions.
• Constructed with high-impact thermoplastic housing for enhanced durability.

Product Highlights

This receptacle provides secure connections with alignment arrows that guide proper installation. The visible catalog number and voltage rating ensure easy identification even in use.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL2430SW

Technical Specifications

• Voltage Rating: 480 VAC
• Amperage Rating: 20 A
• Horsepower: 5 hp
• NEMA Rating: L16-20R
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 75 deg C
• Material: Composite/Thermoplastic
• Enclosure Rating: IP20
• Dimensions: 3.75 in H x 3.75 in W x 2.9 in D
