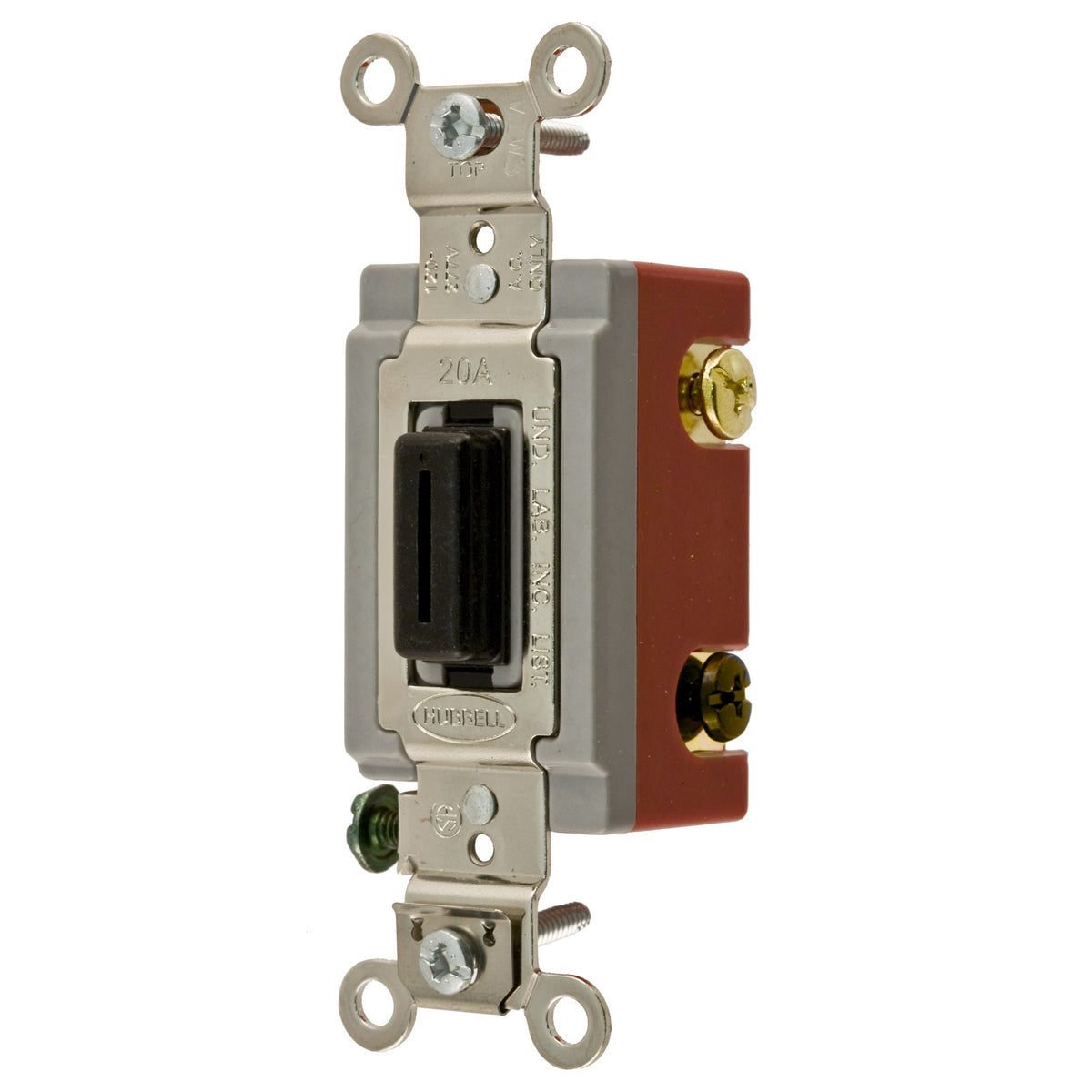

Hubbell Wiring Device-Kellems HBL1223L 20A 120/277V 3Way Locking Switch

Product Description

The Hubbell Wiring Device-Kellems HBL1223L is a heavy-duty industrial-grade locking toggle switch designed for general-purpose AC applications. This switch operates at twenty amps and supports voltages between one hundred twenty to two hundred seventy-seven volts, making it suitable for various operational settings. It features back and side wiring capabilities for flexible installation and a black key guide for easy identification.

• General purpose AC toggle switch for reliable performance
• 20A capacity suitable for high-demand applications
• Three-way function allows control from multiple locations

Product Highlights

This switch is built to withstand industrial conditions, featuring a robust design and materials that ensure durability and safety during use.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Catalog Number: HBL1223L
• Current Rating: 20 Amp
• Voltage Rating: 120-277 Volt
• Wattage: 5540 Watt

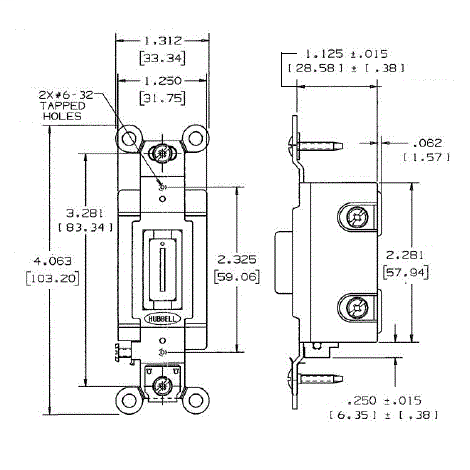

• Height: 1.13 inches
• Width: 1.9 inches
• Length: 4.06 inches
• Material: Composite
• Temperature Rating: -40 to 75 C
