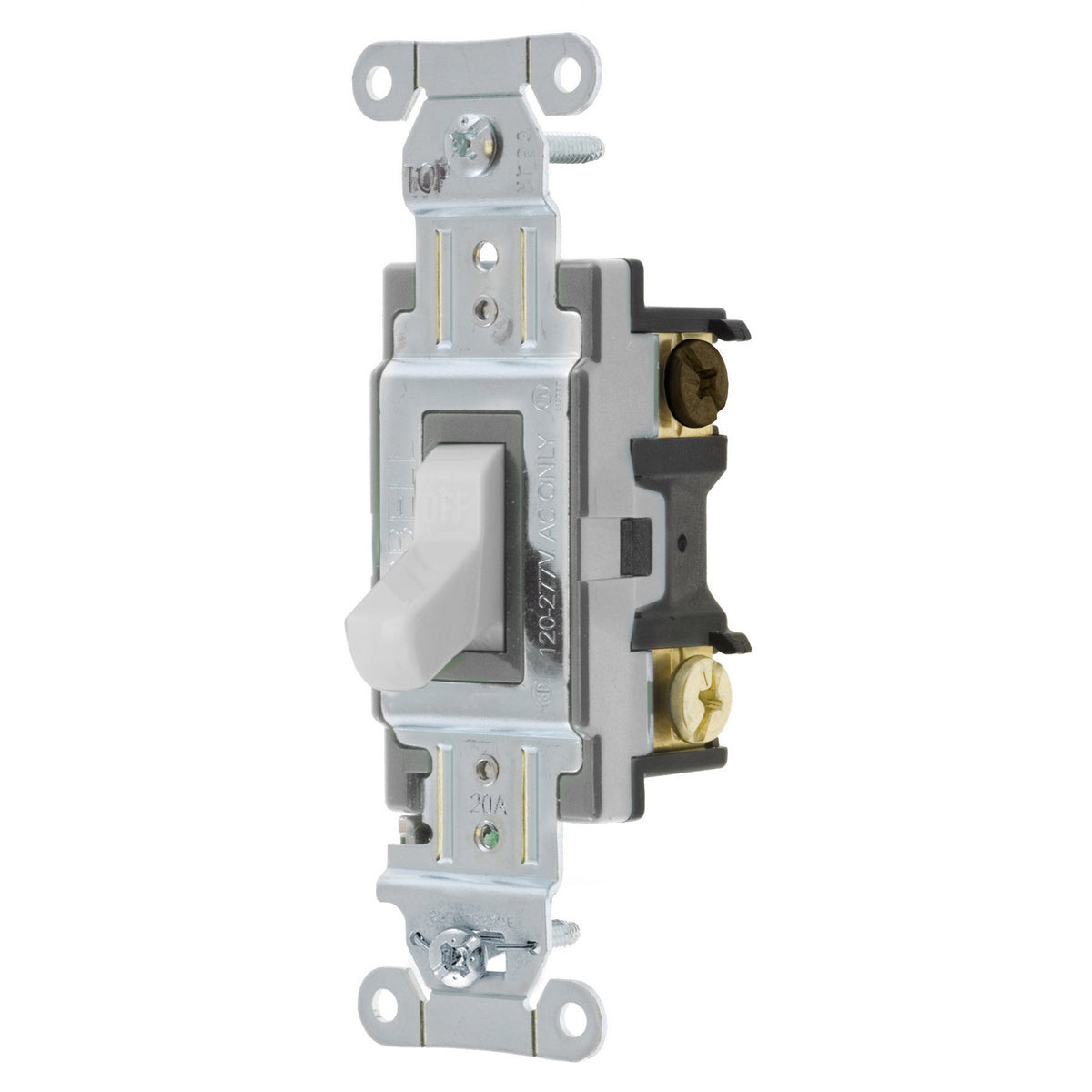

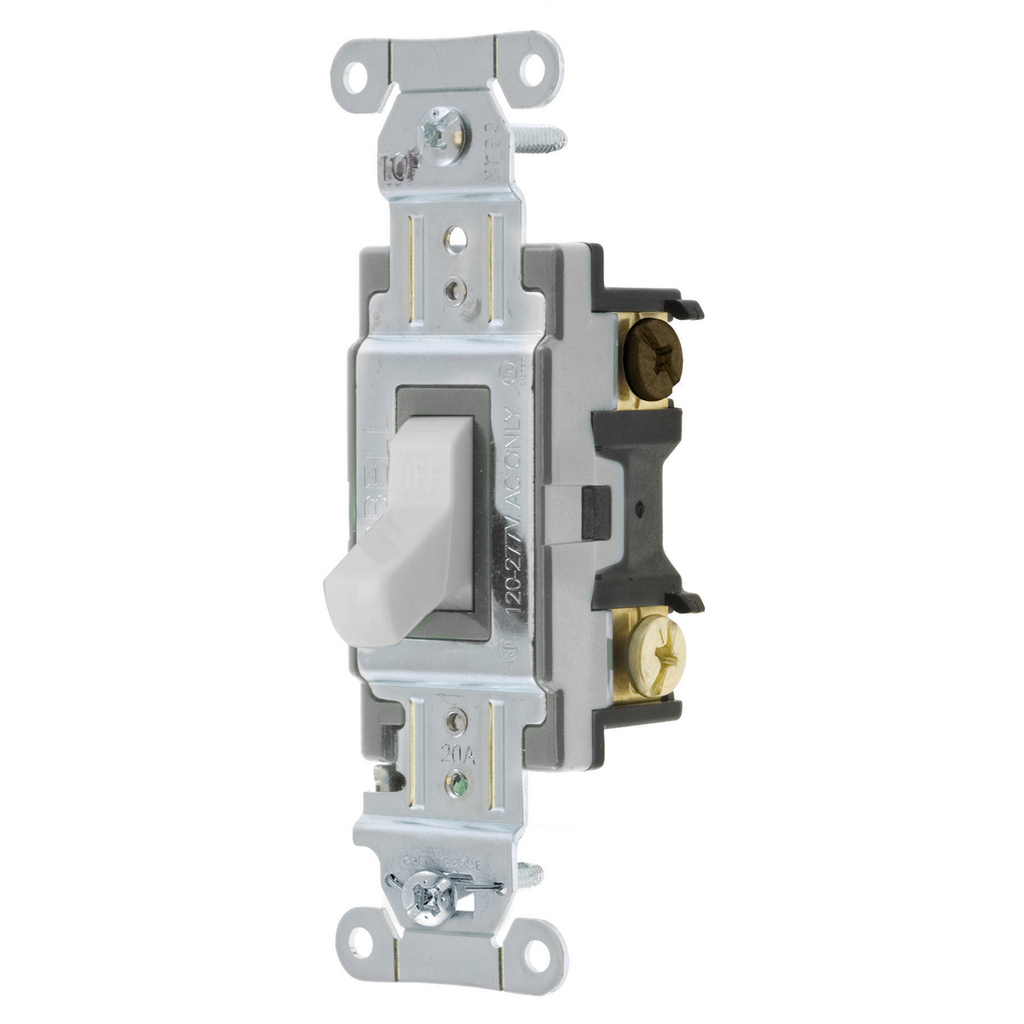

Hubbell Wiring Device-Kellems CS320W Toggle Switch 20A 120/277V 3Way White

Product Description

The Hubbell Wiring Device-Kellems CS320W is a toggle switch designed for commercial applications. This three-way switch supports 20 amps at 120/277 volts. It is ideal for use in offices, warehouses, and other commercial environments where reliable lighting control is needed.

• Thread cleaning captive mounting screw
• Abuse resistant nylon toggle
• Steel, zinc plated bridge for corrosion resistance

Product Highlights

The CS320W is built for durability and ease of installation, featuring side wiring and a positive snap action for reliable operation.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: CS320W

Technical Specifications

• Type: Toggle
• Current Rating: 20 Amp
• Voltage Rating: 120-277 Volts
• Wattage: 5540 Watt
• Application: Commercial Spec Grade
• Operating Cycles: 50000
• Operating Temperature: -40 degrees C to 75 degrees C
• Wire Size Compatibility: 14-10 AWG
