Hubbell Wiring Device-Kellems CS120GY AC Toggle Switch 20A 120/277V

Product Description

The Hubbell Wiring Device-Kellems CS120GY is a two-position standard AC toggle switch suitable for a voltage range of 120 to 277 VAC. This model has an amperage rating of twenty amps and a power rating of five thousand five hundred forty watts. It features a two-position contact configuration and is constructed for long-term use.

• Voltage Range: 120 to 277 VAC
• Power Rating: 5540 W
• Operating Cycles: 50000 cycles

Product Highlights

This product is ideal for general-purpose applications and suitable for commercial specification grade installations. The toggle switch ensures reliable operation in indoor dry environments.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: CS120GY

Technical Specifications

• Type: 2-Position Standard
• Material: Nylon
• Mounting: Threaded

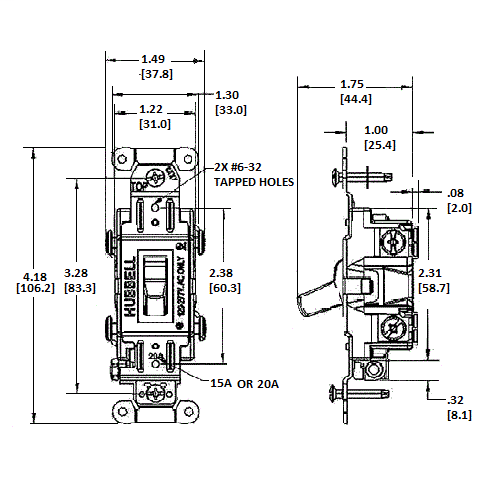

• Dimensions: 4.18 x 1.49 x 1.83 in
• Contact Configuration: 2-Position
• Environmental Conditions: -40 to 75 deg C
• Terminal Type: Side Wire/Screw
• Number of Poles: 1
