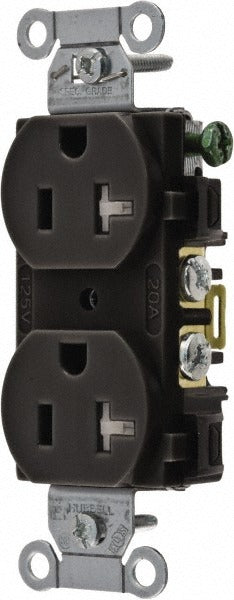

Hubbell Wiring Device-kellems BR20BLKTR Duplex Receptacle

Product Description

The HUBBELL WIRING DEVICE-KELLEMS BR20BLKTR is a specification-grade, straight blade duplex receptacle rated at 20 amps and 125 volts AC with a NEMA 5-20R configuration. Built with a nylon body and a self-grounding design, this receptacle is engineered for commercial and industrial electrical installations where durability and code compliance are required. The tamper-resistant construction meets current NEC requirements for occupied spaces. It is installed by licensed electricians in new construction and retrofit applications where a reliable, flush-mount 20-amp outlet is needed.

This receptacle is suited for commercial offices, healthcare facilities, schools, and other occupied spaces that require tamper-resistant outlets per NEC mandates. Its flush-mount profile fits standard single-gang and compatible multi-gang wallplates. The back and side wiring method supports both push-in and screw-terminal connections, giving installers flexibility in conduit or cable wiring systems. The black finish is specified where matching outlet color is part of the design or facility standard.

Key Features

• NEMA 5-20R configuration rated at 20 amps and 125 volts AC
• Tamper-resistant design meets NEC requirements for occupied spaces
• Self-grounding construction simplifies installation in metal device boxes
• Back and side wiring method supports screw-terminal and push-in connections
• Specification-grade nylon body for durability in commercial environments
• Black finish for applications requiring color-matched devices

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation duplex receptacle for standard flush-mount single-gang electrical boxes in 20-amp branch circuit applications.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the branch circuit at the panel and verify absence of voltage with a meter before beginning work. Secure the device to the outlet box before attaching the wallplate, and confirm the self-grounding clip makes positive contact with a metal device box when relying on it for equipment ground continuity. Tamper-resistant receptacles must not be modified or defeated.
