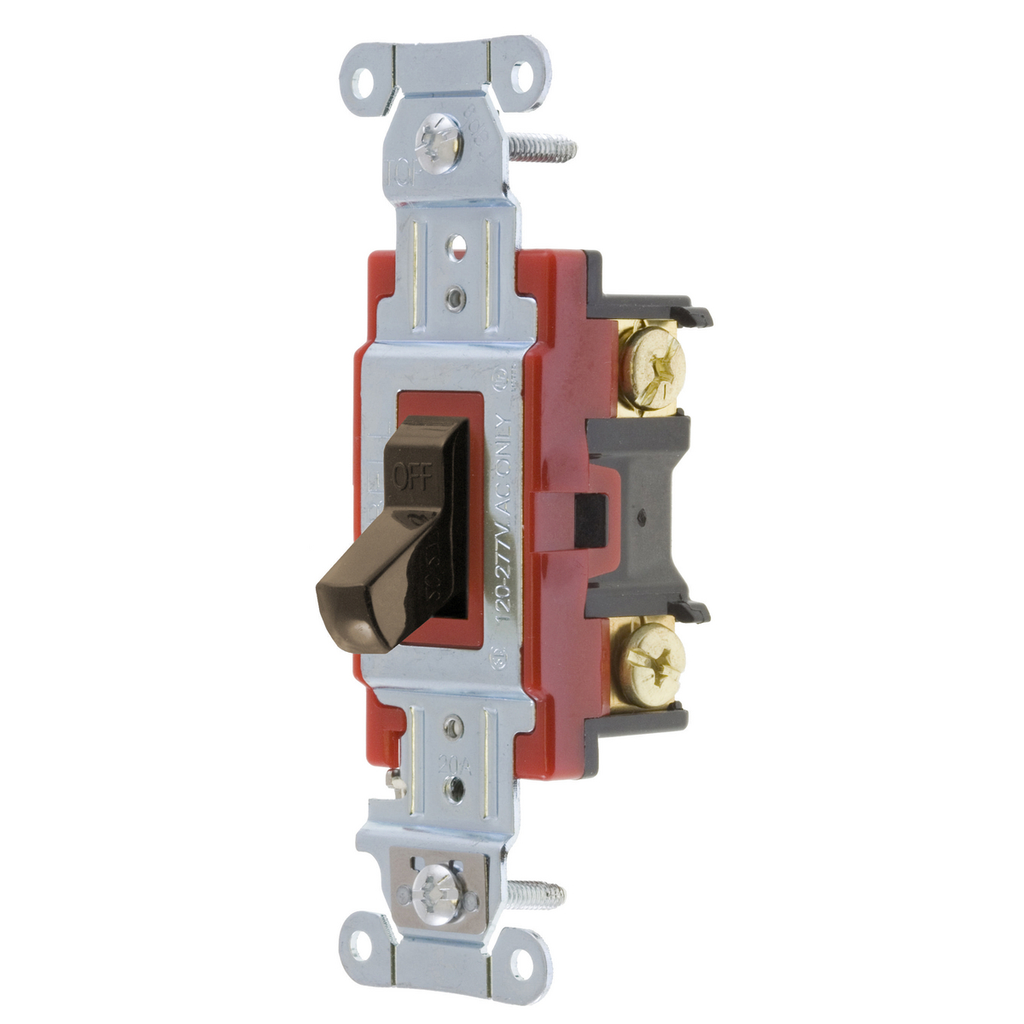

Hubbell Wiring Device-Kellems 1222B Hubbell-Pro Toggle Switch 20A 120/277V

Product Description

The Hubbell Wiring Device-Kellems 1222B is a toggle switch designed for heavy-duty applications. This double pole switch operates at a voltage of 120 to 277 volts and can handle a current of 20 amps. It features a thermoplastic construction, ensuring durability and reliability in various conditions.

• Operates at 20 amps and supports voltages from 120 to 277 volts
• Back and side-wired terminals suit conductor sizes of fourteen to ten AWG
• UL listed and CSA certified for safety

Product Highlights

This toggle switch is suited for industrial-grade use, making it ideal for demanding environments. The construction supports a maximum load capacity of one horsepower at 120 volts and two horsepower at 277 volts.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Country of Origin: United States

Technical Specifications

• Dimensions: 4.18 inches length x 1.49 inches width x 1.83 inches height
• Material: Thermoplastic housing
• Action: Positive Snap
• Dielectric Strength: 1500 volts
• Operating Temperature: -40 degrees C to 75 degrees C
• Flammability Rating: V-2 per UL94
• Contact Configuration: Two Position
• Certificate: UL Listed, CSA Certified
