Hubbell T17SA Conduit Body 1/2 inches T Hub

Product Description

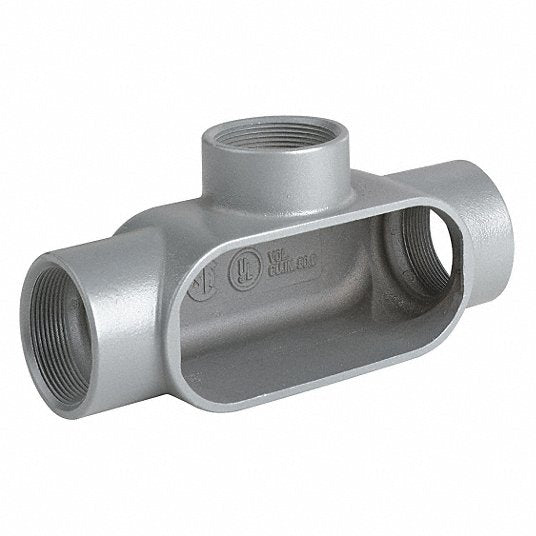

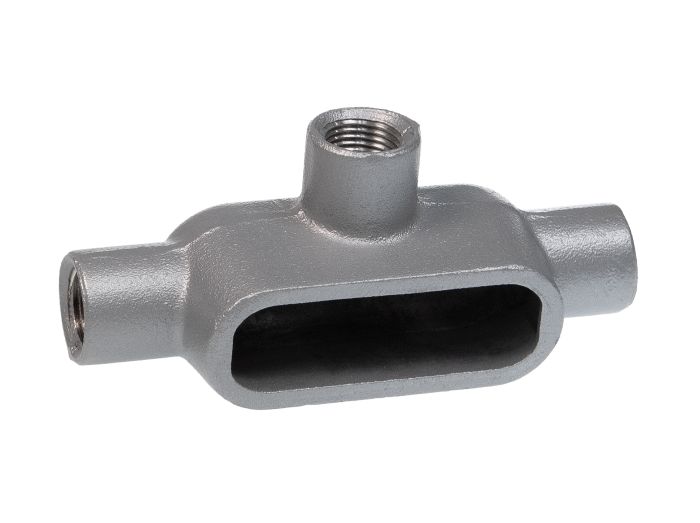

The HUBBELL T17SA is a 1/2" T hub aluminum Duraloy 7 conduit body designed to provide access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. Suitable for wet locations when used with gaskets.

• Innovative spring clip design for installation ease and repeat usage.
• Smooth integral wire bushings protect cable.
• Intermateability UL Listed and CSA Certified interchangeability with competitive products.

Product Highlights

This conduit body is suitable for use in hazardous location applications and is compatible with IMC and RMC conduit types.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: T17SA
• Country of Origin: United States

Technical Specifications

• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Catalog Number: T17SA
• Color: Gray
• EU RoHS Indicator: Contact Manufacturer
• Finish Type: Powder Epoxy Paint
• Hub Pattern: T
• Material: Aluminum
• Series: Duraloy 7 Series
• Type: Conduit Body
• UPC: 783936080307
• Hub Size: 1/2 in
• CSA File Number: LR11852
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• UL File Number: E3397
• Compatible Conduit Trade Size: 1/2 in
• Thread Size: 1/2 in
• Trade Size: 1/2 in
• Item: Conduit Outlet Body
• Conduit Outlet Body Type: Conduit Outlet Body
• Hazardous Location: Yes
• Conduit Outlet Body Material: Aluminum
• Conduit Outlet Body Style: T
• Includes: Set Screw Hubs
• For Use With: IMC, RMC
• Special Features: Set Screw Hubs
• Back Type: Flat
• Standards: CSA, UL
• Form: Form 7
• Thread Gender: Female
• Connection Orientation: Multi-Angle
• Connection Type: Threaded
• Shape: T
• Compatible Cover: 170G
• Finish: Powder Coated
• Body Capacity: 6.2 cu in
• Hub Style: Threaded
• Compatible Conduit Type: IMC, RMC
• Body Type: Conduit Outlet Body
• Thread Type: NPT
• Hazardous Location Rating: Class I Zone 2, Class I, Division 2
• Number of Hubs: 3
• Manufacturer Part Number: T17SA
• Manufacturer: Killark
• Product Series: DURALOY 7
• Family Series: Killark Conduit Outlet Bodies, Duraloy 7 Series
• Description: FORM 7, CNDT BODY, 1/2 TYPE T AL
• Style: Threaded Aluminum
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Composition: Aluminum
• Protection Rating: Indoor, Outdoor
• Net Weight: 0.465 lbs
• Gross Weight: 0.465 lbs
• UNSPSC: 39121202
