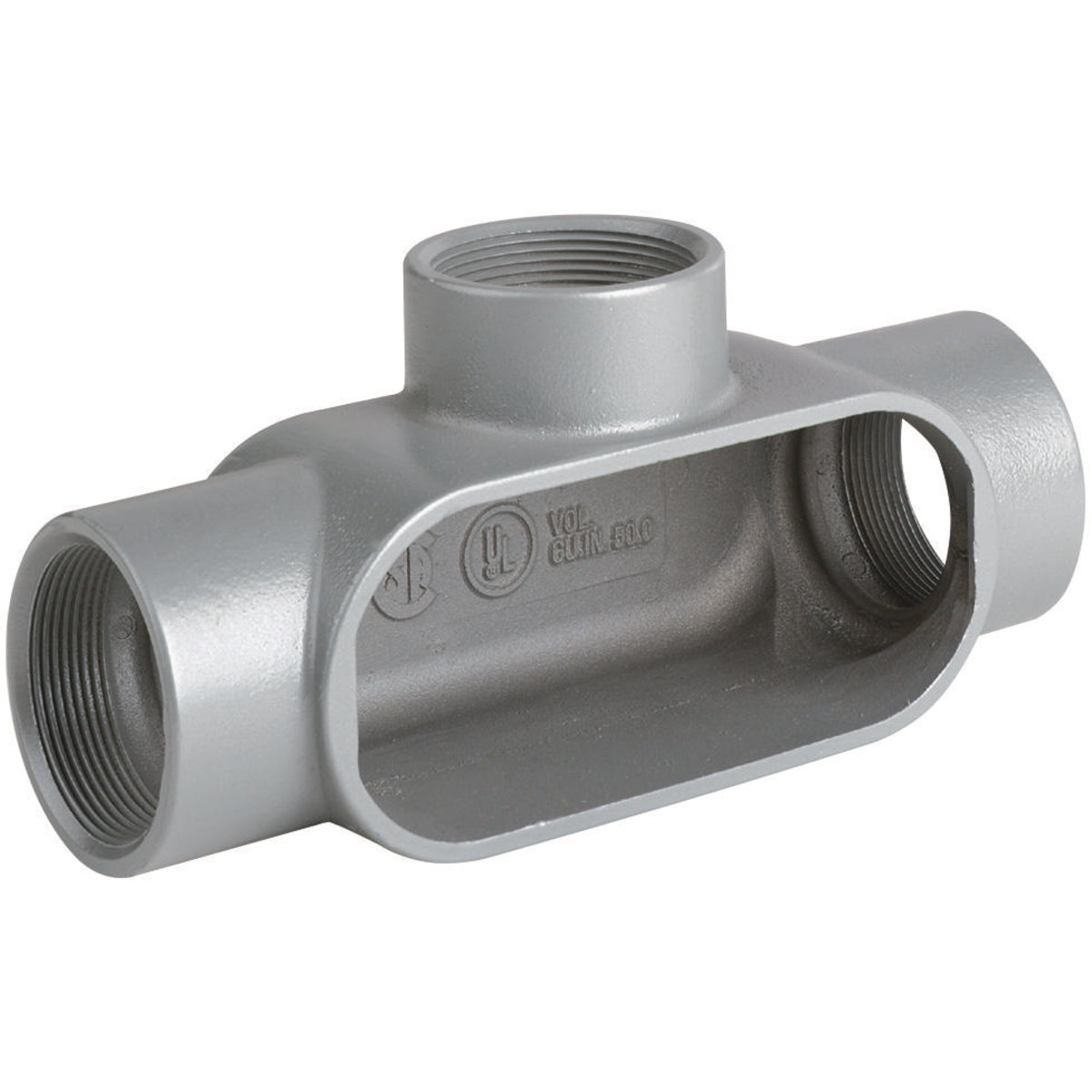

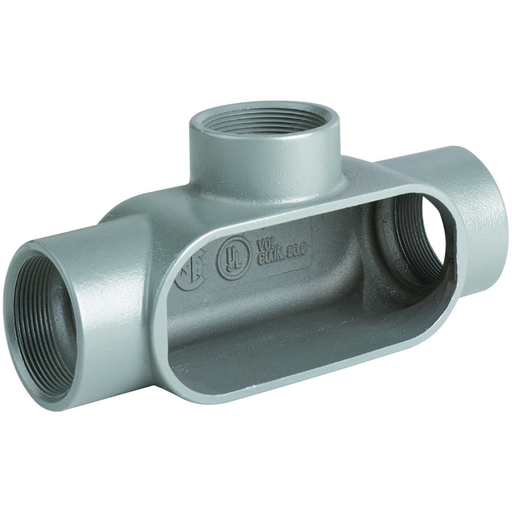

Hubbell T107 4 Inch Iron Type T Conduit Body

Product Description

The Hubbell Electrical Systems T107 is a four-inch iron Type T conduit body designed to facilitate access to electrical conductors for maintenance and splicing. The product is suitable for both steel and aluminum threaded rigid conduit installations.

• Enhanced sealing capabilities with neoprene sealing gaskets providing a NEMA 3 Seal.
• High-quality stainless steel cover screws ensure durability and reliability.
• Flat-back design for improved wiring capacity and mounting stability.

Product Highlights

This conduit body is ideal for wet locations when used with appropriate gaskets. It features a unique spring clip design for easy installation and repeated use.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• Sub Brand: Killark

Technical Specifications

• Applications: Provides access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Hub Size: 4 inches
• Material: Iron
• Trade Size: 4 Inch
• Type: Non-Reversing
• Color: Gray
• Finish: Powder Epoxy Paint
• Height: Six and one-half inches
• Length: Sixteen inches
• Width: Eight and one-quarter inches
• Country of Origin: Mexico
