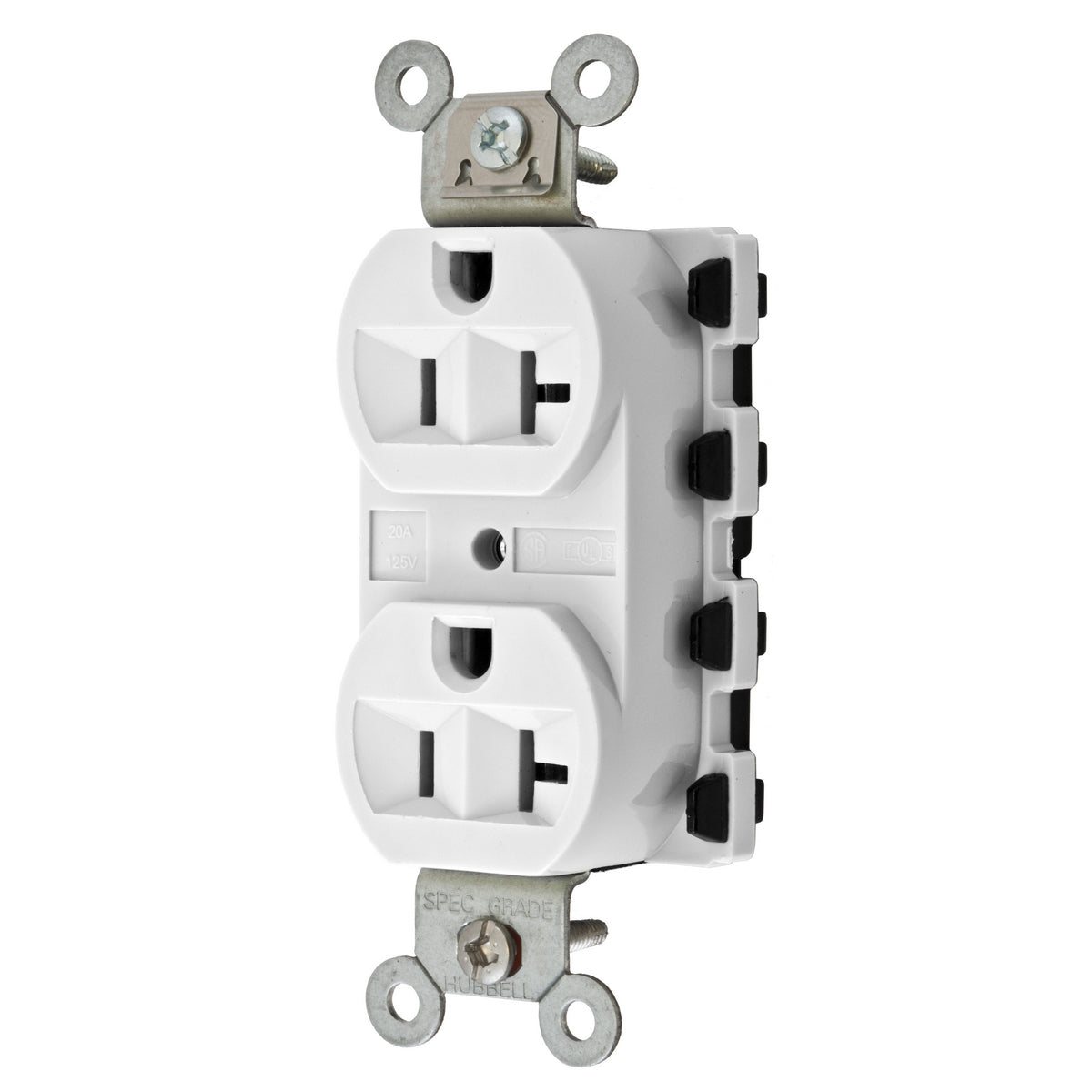

Hubbell SNAP5362WA SNAP2CONNECT 20A/125V DPLX, WHITE

Product Description

The Hubbell SNAP5362WA is a wiring device designed for efficient installations. It features a modular design for easy connection and disconnection. This receptacle is rated for 20 Amps and 125 Volts, making it suitable for various applications.

• 20 Amp, 125 Volt rating
• Durable nylon construction for heavy use
• Modular wiring system simplifies installation

Product Highlights

The SNAPConnect system enhances installation efficiency while providing reliable electrical connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: SNAP5362WA

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Temperature Rating: -40 to 75 deg C
• Color: White
• Material: Nylon
• Dimensions: 3.28 x 1.64 x 1.1 inches
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Horsepower: 1 hp
• Application: Dry Location, Indoor, Commercial
• Standards/Approvals: RoHS Compliant, UL 498, CSA C22.2 File No. 42
• Type: 1-Phase Duplex Extra Heavy Duty
