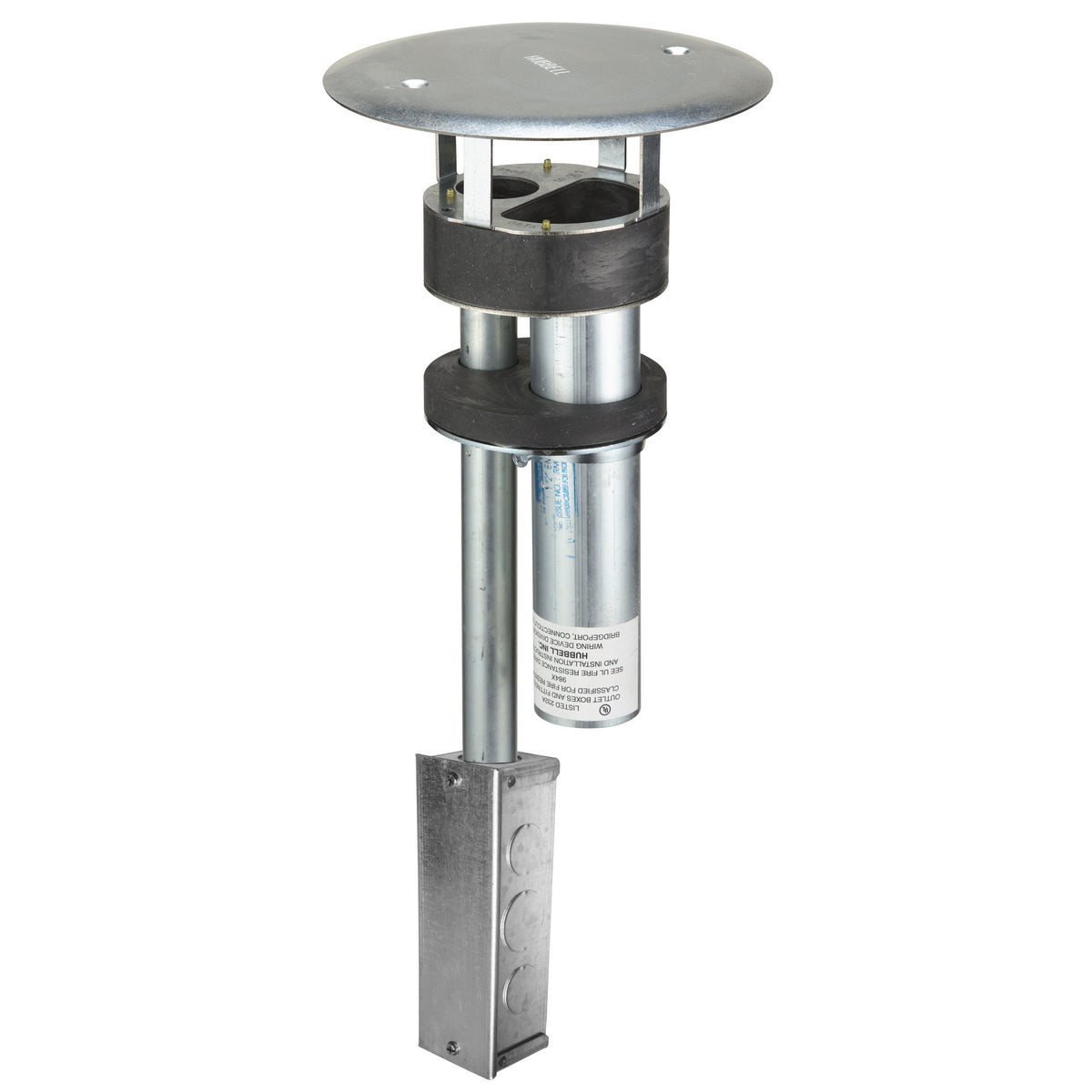

Hubbell S1PTAVFITJ SystemOne AV Series Fire-Rated Poke-Through Floor Pedestal with Junction Box

Product Description

The HUBBELL S1PTAVFITJ SystemOne is an innovative system for demanding multi-service applications, offering solutions for flush in-floor boxes and fire-rated poke-through. It features a universal cover assembly and application sub-plates compatible with Hubbell floor boxes and fire-rated poke-throughs. Ideal for high-capacity audio/video and data needs.

• Step down installation clips allow the fitting to be removed from the floor from above
• Stationary fire barrier expands during fire conditions to provide upper fire seal
• Flared conduit exit facilitates proper cable pulling and bend radius

Product Highlights

Provides a consistent, aesthetic, and functional solution for power, voice, data, and A/V requirements in-the-floor or through-the-floor.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: S1PTAVFITJ
• Country of Origin: US - United States

Technical Specifications

• Brand: Hubbell Wiring Systems
• Manufacturer: Hubbell
• Model / MPN: S1PTAVFITJ
• Part ID / MPN: S1PTAVFITJ
• UPC: 783585373027
• EAN: 0783585373027
• Application: For demanding, high capacity audio/video and data requirements
• Cover Material: Die-Cast Aluminum
• Finish: Natural
• Hole Size: 4 in
• Length: 19.64 in
• Material: Composite
• Standards/Approvals: ADA Compliant|UL 514A File No. E31999|cULus Listed
• Suitable For Use With: In-Floor Delivery System, Concrete Floor, SystemOne Universal Covers and Sub-Plate
• Type: 3-Piece Flush Standard Sized
• Application - For Use On: Carpet/Tile
• EU RoHS Indicator: No
• Material - Mounting Hardware: Step-Down Installation
• Number Of Outlets: Multi-Service
• Specifications: Approval - Approved for use in the City of Chicago Cover and flange - Powder coat cast aluminum Min. floor thickness - 2 1/4 in. (57.2) Mounting - 4 in. (101.6) cored concrete Dia. through hole
• Style: In Floor Fitting
• Cable Entry: Through Cover
• Industry Standard(s): cULus Listed
• Through-Floor Fittings: Through-Floor Fittings
• Conduit Entry: 3/4 and 1-1/2 EMT
• Core Size: 4 in.
• Fire Rating: 4 Hours
• Width: 9.3 in.
• UNSPSC: 39121328
• MFR #: S1PTAVFITJ
• UPC #: 783585373027
• Country of Origin: United States
• Overall Width: 9.3 in
• Conduit Size: 1/2 in, 3/4 in, 1 in
• Item: Poke-Through Box
• Box Type: Wiring
• Knockouts: In Junction Box: Top: (1) 1", Bottom: (1) 3/4", Sides: (2) 1/2" and (1) 3/4"
