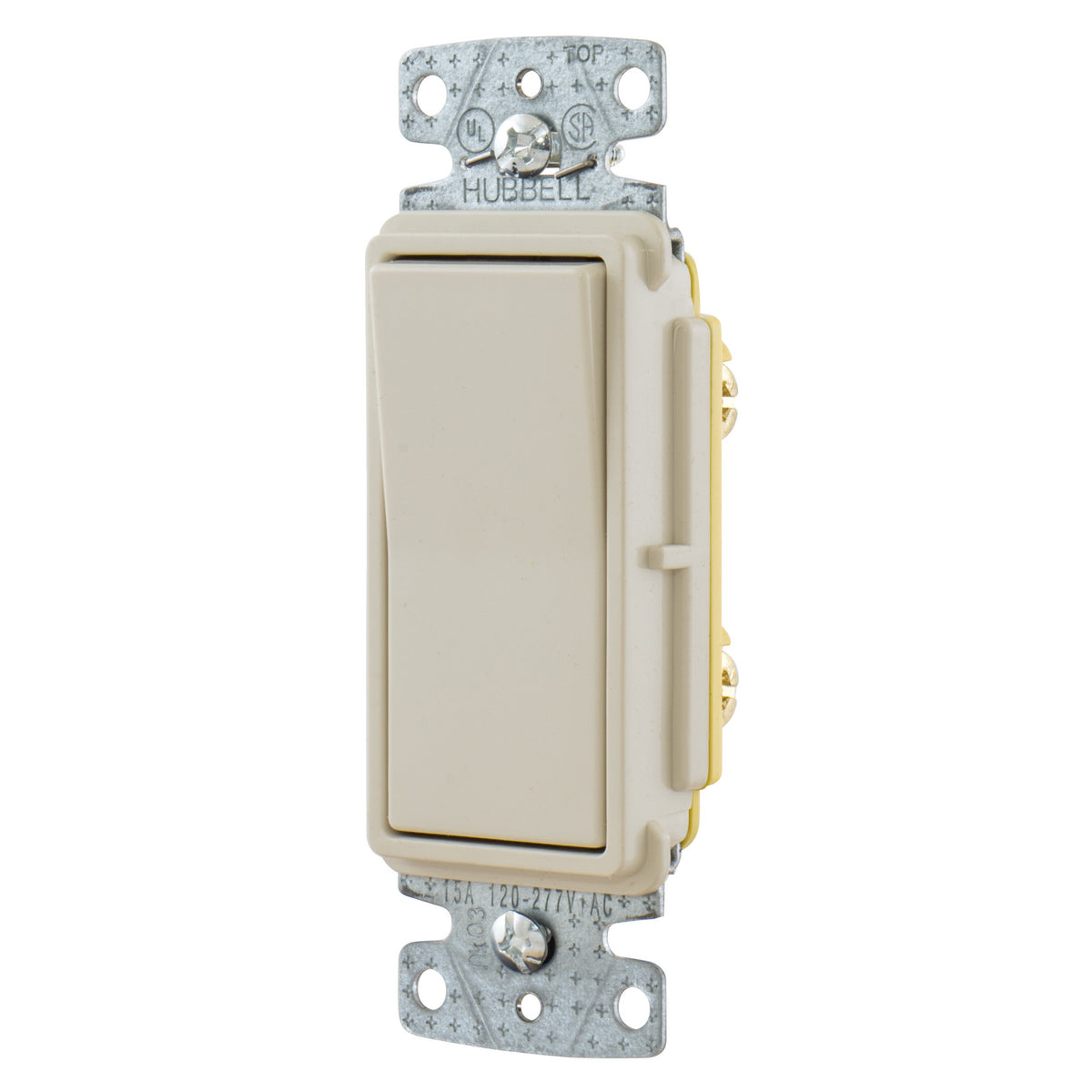

Hubbell RSD115LA Residential Rocker Switch, 15A 120/277V

Product Description

The Hubbell RSD115LA is a residential rocker switch designed for general purpose use. It operates at 120/277 V and has a maximum rating of 15 A and 4155 W. This switch features a self-grounding capability and is easy to install.

• Smooth, quiet rocker mechanism
• Standard self-grounding
• Composite construction with light almond finish

Product Highlights

This switch is suitable for indoor residential applications and adheres to NEMA standards.

Product Information

Standard Information

• Manufacturer: Hubbell
• Power Rating: 4155 W

Technical Specifications

• Actuator: Rocker
• Amperage Rating: 15 A
• Application: General Purpose AC, Indoor and Residential Applications
• Color: Light Almond
• Contact Configuration: 2 Position
• Dimensions: 1.47 inches wide x 1.35 inches deep x 4.91 inches high
• Environmental Conditions: -20 to 60 degrees C
• Manufacturer Part Number: RSD115LA
• Material: Composite
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 30000 cycles
• Standards/Approvals: RoHS Compliant, CSA Certified, NEMA WD1, UL 20
• Terminal Type: Back/Side Wire/Push-In
• Type: Residential Grade Self-Grounding Standard
• Voltage Rating: 120/277 V
