Hubbell RR330F Wiring Device-Kellems tradeSELECT Power Receptacle 30A 125/250V RR330F

Product Description

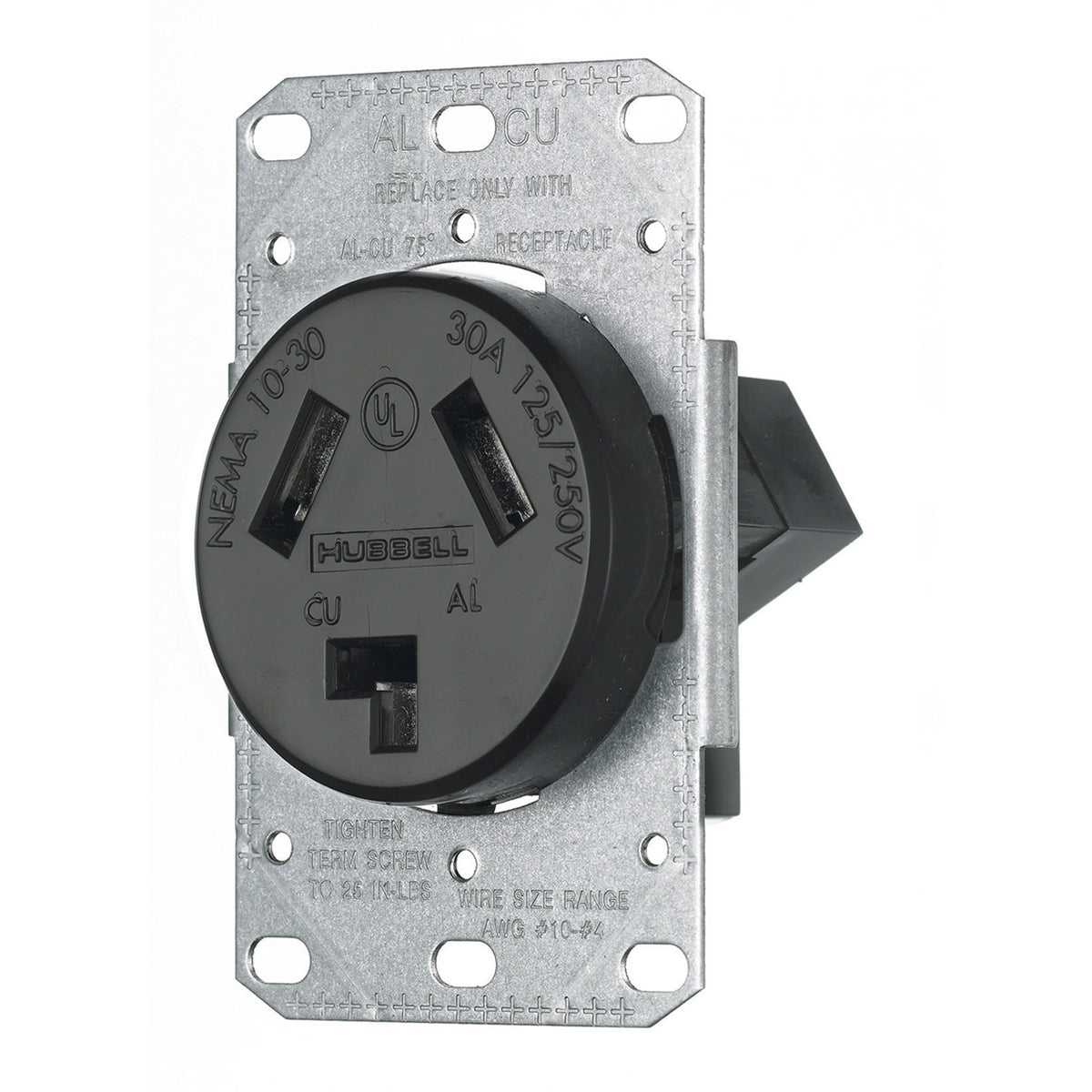

The Hubbell RR330F is a power receptacle designed for one-phase dryer range use. It operates at 125/250 VAC and provides a current rating of thirty amps. This receptacle features three poles and three wires, making it suitable for various applications.

• Eliminates the need to loop the wire
• External back wire clamp for secure installation
• Flush mount for 1 or 2-gang box

Product Highlights

The RR330F power receptacle combines durability with ease of installation, making it ideal for residential applications.

Product Information

Standard Information

• Type: 1-Phase Dryer Range Screw Mount
• Manufacturer: Hubbell

Technical Specifications

• Amperage Rating: 30 A
• Application: Residential Applications
• Color: Black
• Dimensions: 2.4 in W x 2.5 in D x 3.75 in H
• Manufacturer Part Number: RR330F
• Material: Thermoplastic/Composite
• NEMA Rating: 10-30R
• Number of Poles: 3
• Number of Wires: 3
• Temperature Rating: 75 deg C
• Terminal Type: Pressure Screw
• Voltage Rating: 125/250 VAC
