Hubbell RLR200 RACO 2 in Rigid LR Assembly

Product Description

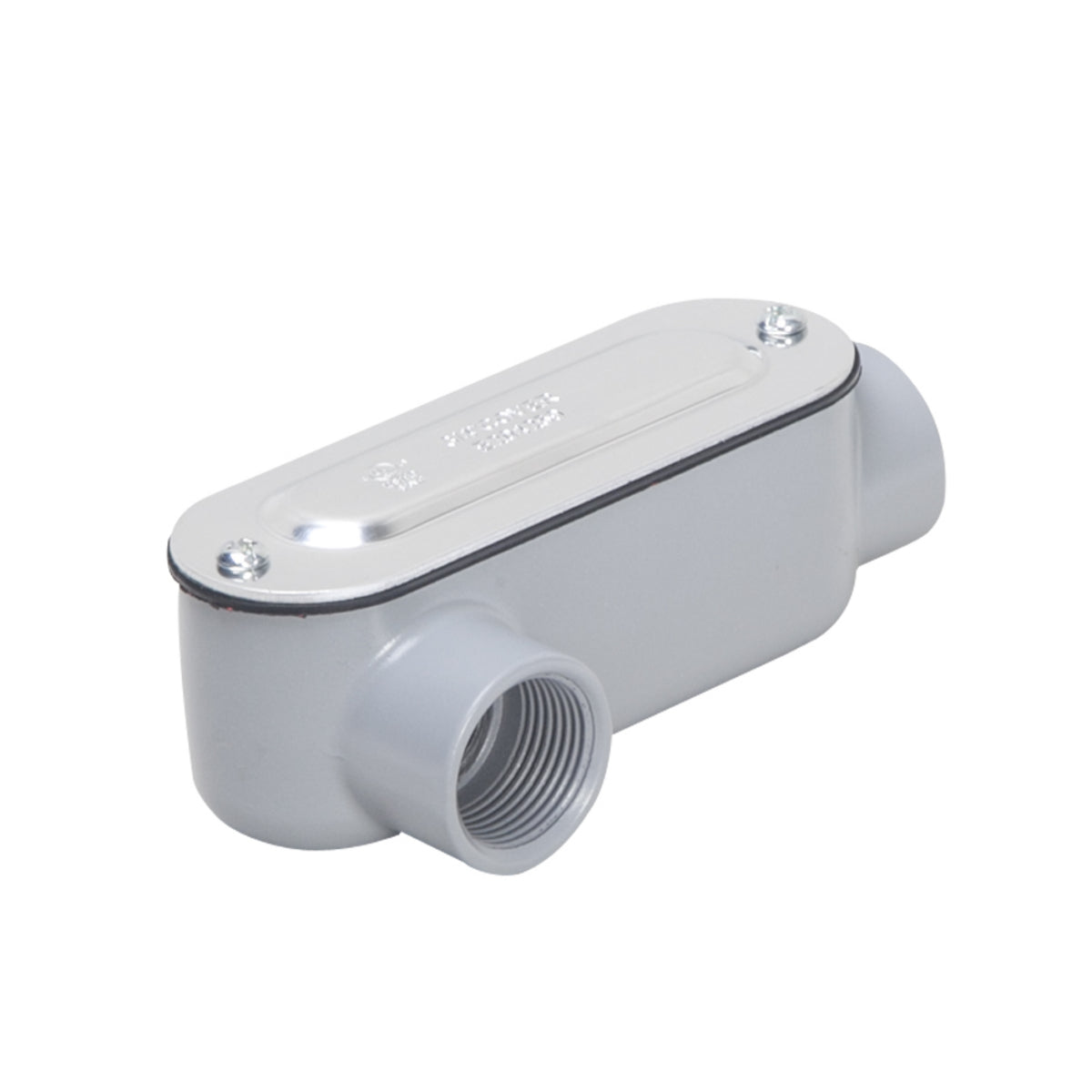

The Hubbell RLR200 is a conduit body designed for electrical installations. This Type LR conduit body features two hubs and is suitable for pulling access or splitting a run into multiple directions. Made from die cast aluminum and finished with a premium powder coat, the RLR200 offers durability in various environments.

• Type LR conduit body with two hubs
• 67 cubic inches of capacity
• Compatible with thread connections

Product Highlights

The Hubbell RLR200 is efficient for accessing wires and making connections. It is ideal for both commercial and residential applications where reliable electrical junctions are required.

Product Information

Standard Information

• Application: For pulling access or to split a run into multiple directions
• Connection Type: Thread

Technical Specifications

• Color: Gray
• Material: Die Cast Aluminum
• Hub Size: 2 in
• Enclosure: NEMA 3R
• Dimensions: 10.05 in L x 4.27 in W x 3.41 in H
• Maximum Wire Fill: (3) 2/0 AWG
• Prop65 Message: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
