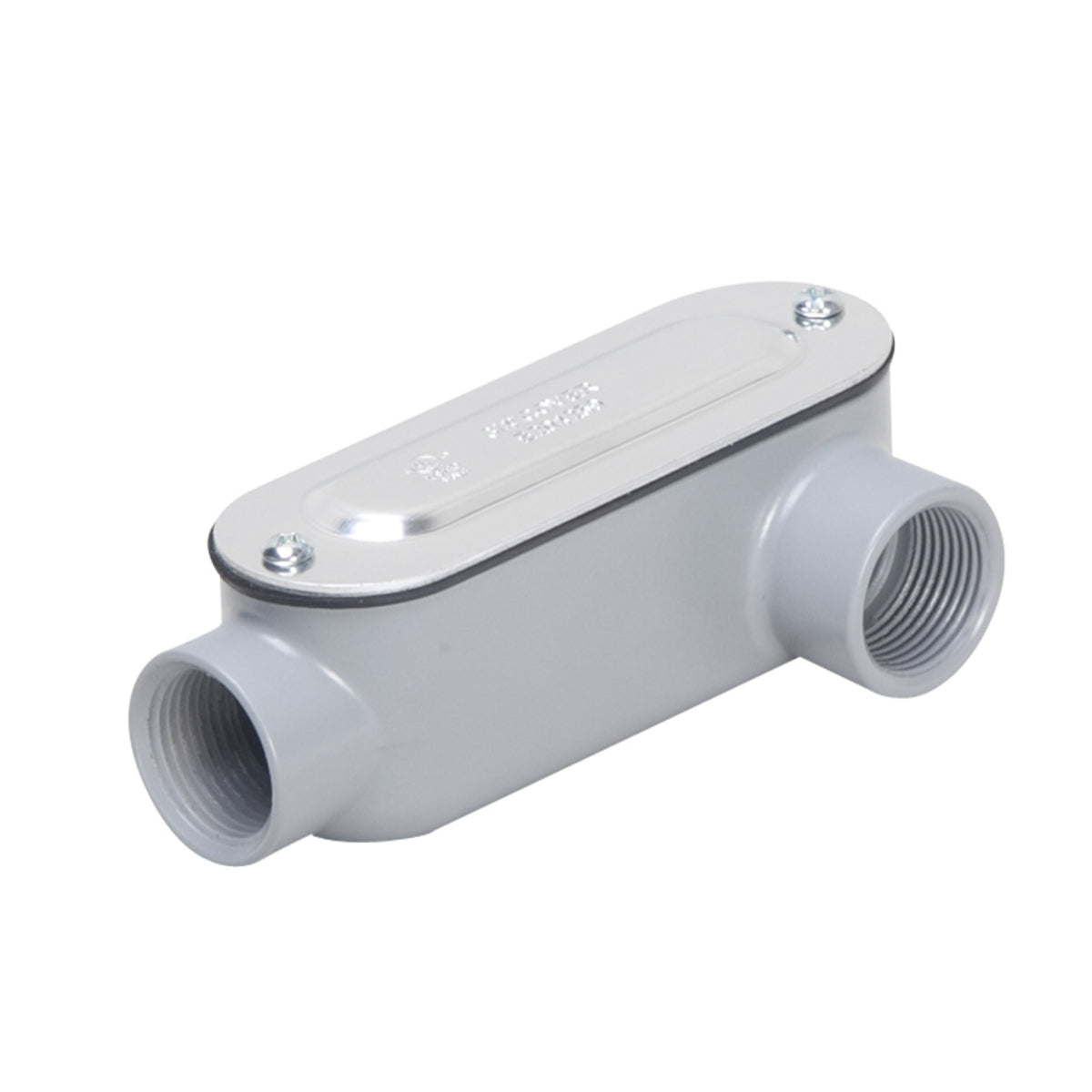

Hubbell RLL200 RACO 2 IN RIGID LL ASSEMBLY

Product Description

The Hubbell RLL200 is a conduit body designed for use with threaded rigid or IMC conduit. It allows for pulling access or splitting a run into multiple directions. The removable cover enables maintenance access and making taps and splices to conductors in electrical applications. This assembly features two hubs and is made of durable materials for long-lasting performance.

• Application with threaded rigid/IMC conduit
• Removable cover for maintenance access
• Durable die cast aluminum construction

Product Highlights

The RLL200 conduit body is suitable for various electrical applications requiring robust and reliable construction.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: RLL200

Technical Specifications

• Application: For use with threaded rigid/IMC conduit for pulling access or to split a run into multiple directions
• Dimensions: 10.05 in L x 4.27 in W x 3.41 in H
• Hub Size: 2 in
• Capacity: 71.4 cu-in
• Material: Die Cast Aluminum
• Finish: Powder Coated
• Color: Gray
• Enclosure: NEMA 3R
• Number of Hubs: 2
• Connection Type: Thread
• Standards/Approvals: UL File No. E331564 | NEC Certified
• Prop65 Message: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
