Product Description

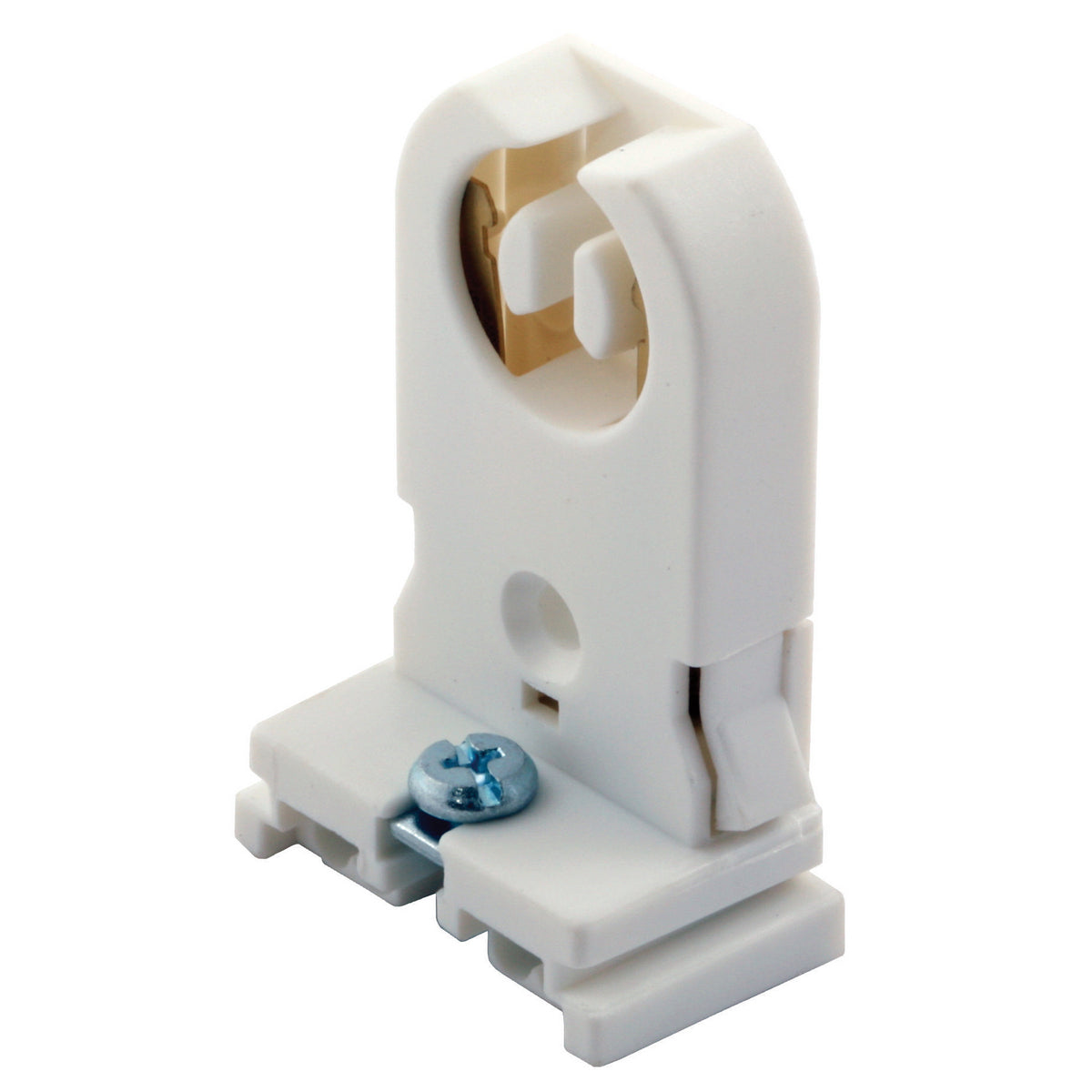

The Hubbell RL320 is a pedestal lampholder suitable for T8/T12 fluorescent lamps. This product works with medium bi-pin lamp bases and can support a lamp wattage of six hundred sixty watts at six hundred volts AC. The device features a screw terminal connection and is designed for slide-on/snap-in mounting, which simplifies installation.
- Pedestal type lampholder
- Medium bi-pin base compatible
- Safe for use with T8/T12 fluorescent lamps
Product Highlights
This lampholder is ideal for various lighting applications and is compliant with UL standards.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 88377811235
Technical Specifications
-
Amperage Rating: 1.1 A
-
Application: For T8/T12 tall profile fluorescent lamp
-
Color: White
-
Connection Type: Screw
-
Dimensions: 2-1/8 in W x 3/4 in H
-
Frequency Rating: 60 Hz
-
Includes: Captive Nut
-
Lamp Base Type: Medium Bi-Pin
-
Lamp Type: T8/T12 Fluorescent
-
Lamp Wattage: 660 W
-
Material: Composite
-
Mounting Type: Slide-On/Snap-In
-
Series: TL211
-
Standards/Approvals: UL 498|RoHS Compliant
-
Terminal Type: Screw
-
Type: Pedestal
-
Voltage Rating: 600 VAC
