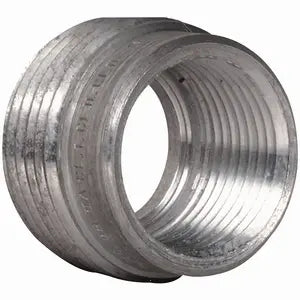

Hubbell R42 Reducing Bushing 1-1/4 inches to 3/4 inches

Product Description

The HUBBELL R42 is a 1-1/4" to 3/4" reducing bushing with tapered threads (NPT). Its smooth internal bushing protects conductors and is threaded for Rigid Conduit or IMC. Killark’s reducing bushings and adapters assist in reducing the trade size of tapped holes.

• Tapered threads (NPT)
• Smooth internal bushing protects conductors
• Threaded for Rigid Conduit or IMC

Product Highlights

Reducing bushings and adapters assist in reducing the trade size of tapped holes. Available in copper-free aluminum and zinc plated steel.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: R42

Technical Specifications

• Application: To reduce the trade size of a taped hole or hub.
• Catalog Number: R-42
• Color: Silver
• Finish Type: Natural
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: R Series
• Type: Reducing Bushing
• UPC: 783936570051
• Hub Size: 1-1/4" to 3/4"
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class I, Zones 1 & 2, Groups IIC, IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G
• CSA File Number: LR11716
• UL File Number: E10514
• Category: Bushing
