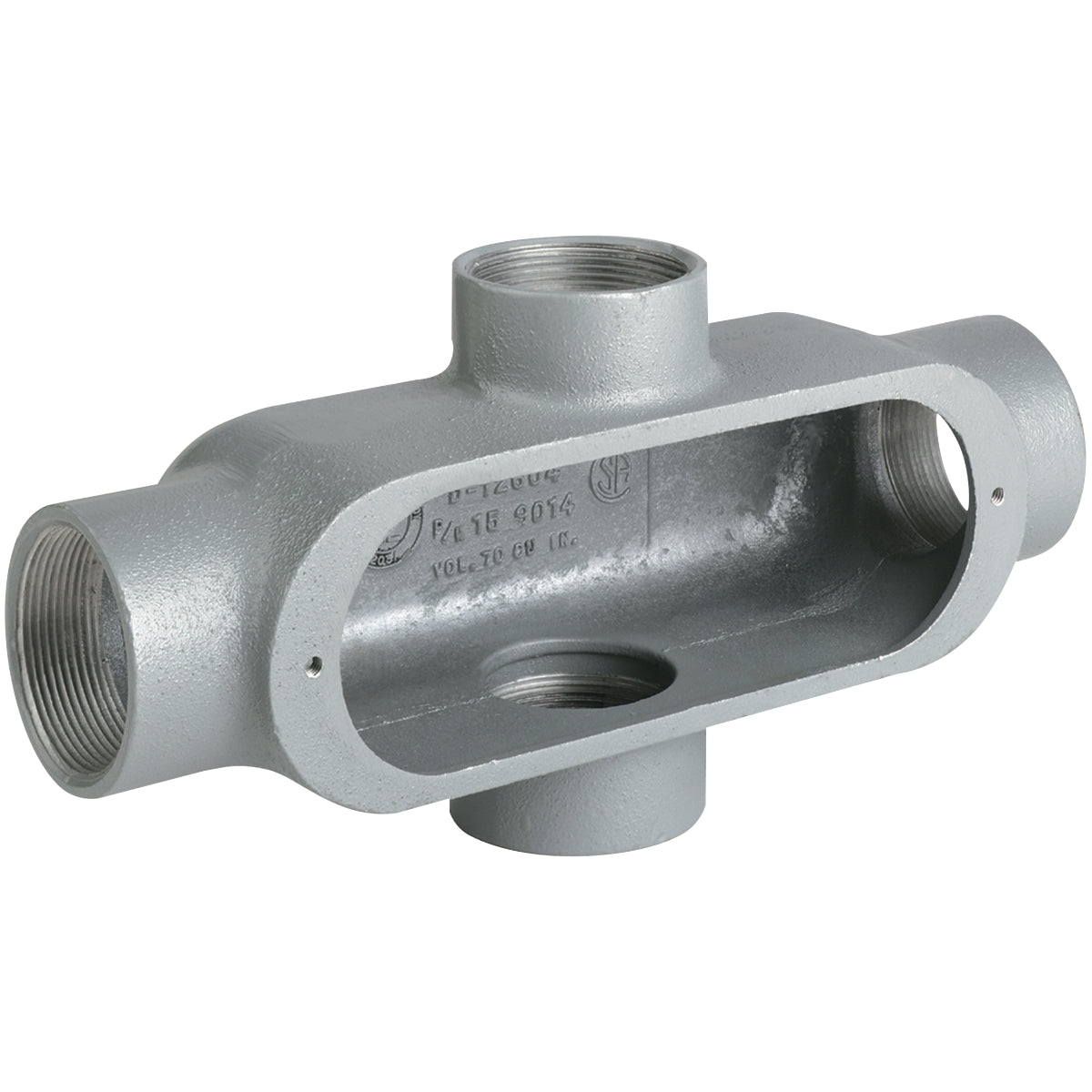

Hubbell OX-1 O Series Type X Conduit Body, 1/2 in Hub, 4 cu-in Capacity

Product Description

The Hubbell OX-1 is a Type X Conduit Body designed for effective access to conductors. It features a half-inch hub and is suitable for various wiring applications. The product includes four hubs and has a capacity of four cubic inches.

• Tapered threaded hubs (NPT)
• Interchangeable with competitive products
• Suitable for wet locations when used with gasketed covers

Product Highlights

The OX-1 is made of aluminum and coated with an electrostatic powder finish. It can be used in hazardous location applications in accordance with NEC regulations.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: OX-1

Technical Specifications

• Application: Used to provide access to conductors for pulling, splicing and maintenance
• Color: Gray
• Connection Type: Thread
• Dimensions: 5-3/8 inches L x 1-11/16 inches W x 1-3/4 inches H
• Finish: Powder Coated
• Hub Size: 1/2 inch
• Material: Aluminum
• Number of Hubs: 4
• Series: O Series
• Standards/Approvals: UL File No. E3397, CSA File No. LR11852, Federal Specification W-C-586D/A-A 50563
• Type: Type X
