Product Description

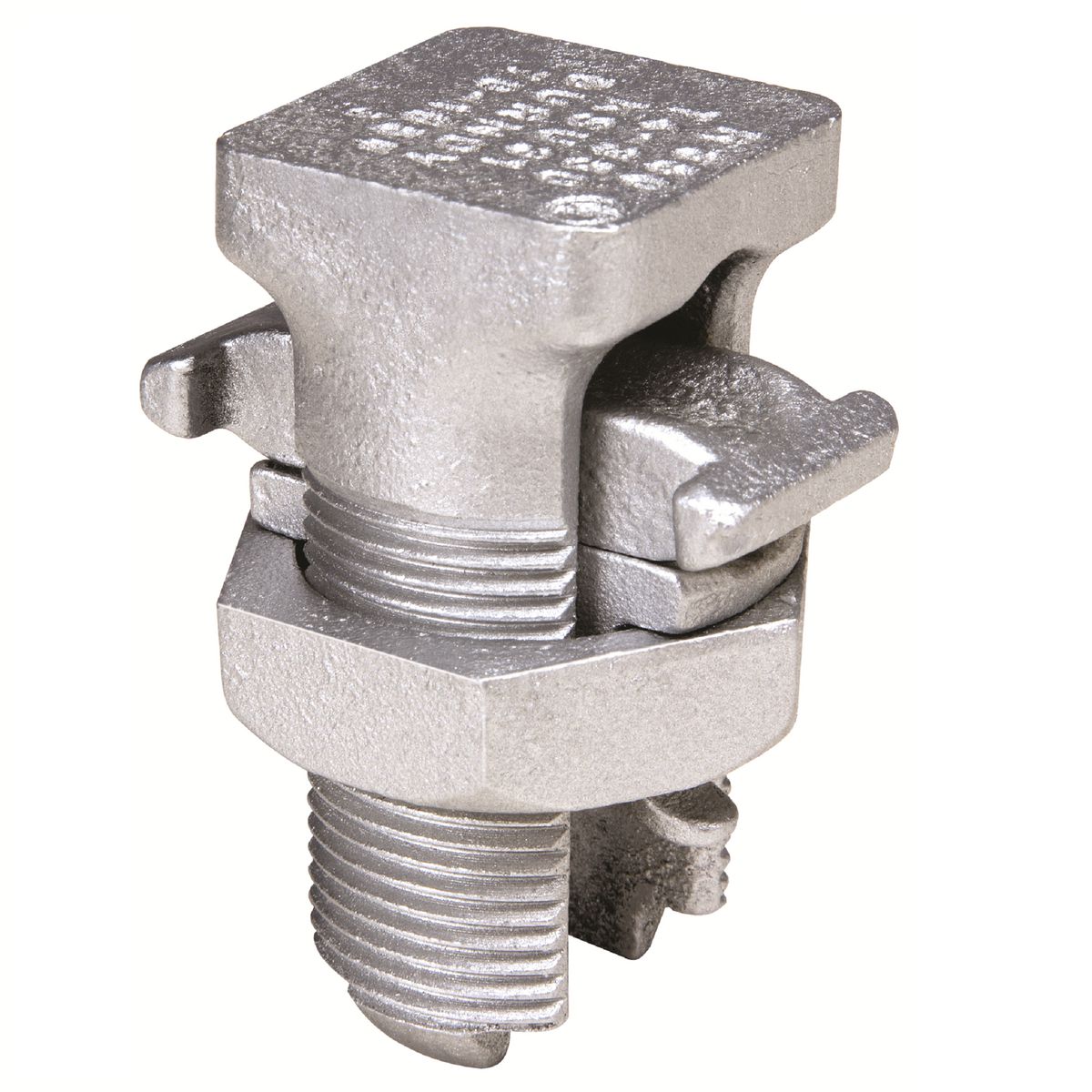

The Hubbell KSU31 is a BURNDY SERVIT split bolt connector designed for universal applications. It accommodates conductors from three-aught AWG to three hundred fifty kcmil. The product measures two point eighty-eight inches in length and is made from a high strength copper alloy that is tin coated.
- Compatible with various conductor types, including copper and aluminum.
- Rated for a torque of six hundred fifty inch-pounds.
- Offers a universal mounting option for easy installation.
Product Highlights
This connector provides an effective solution for grounding and bonding needs in electrical installations.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: KSU31
Technical Specifications
-
Application: All combinations of copper, aluminum, ACSR, AAAC, 5005 and steel
-
Conductor Size: 3/0 AWG to 350 kcmil, 4 AWG to 350 kcmil
-
Finish: Tin Coated
-
Length: 2.88 in
-
Material: Copper Alloy
-
Number of Conductors: 1
-
Series: KSU
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant
-
Torque Rating: 650 in-lb
-
Type: Universal
-
Width: 1.36 in
