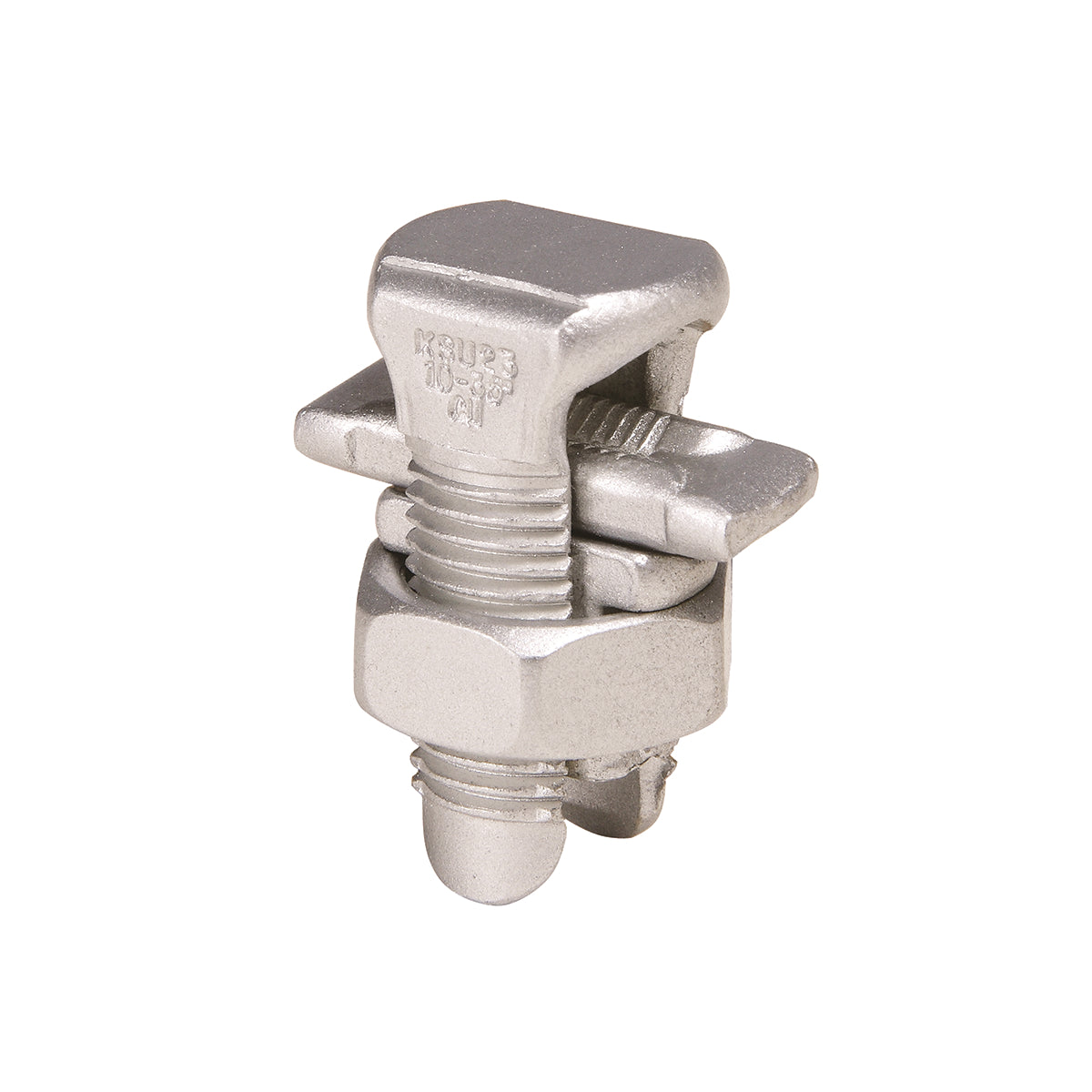

Hubbell KSU22 BUR 3AWG Split Bolt Conn

Product Description

The Hubbell KSU22 is a universal split bolt connector designed for a range of electrical applications. It accommodates conductors sized from ten to two American Wire Gauge (AWG) and has a length of one and one-quarter inches. This connector is made of high-strength copper alloy that is tin coated for durability.

• Compatible with both copper and aluminum conductors.
• Torque rating of 275 in-lb for secure connections.
• Recommended use with PENETROX joint compound for aluminum and ACSR connections.

Product Highlights

This split bolt connector is ideal for grounding and bonding applications. It effectively separates dissimilar conductors to ensure reliable electrical connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: KSU22

Technical Specifications

• Application: All combinations of copper, aluminum, ACSR, AAAC, 5005, and steel
• Conductor Size: 10 to 2 AWG
• Finish: Tin Coated
• Length: 1-1/4 in
• Material: Copper Alloy
• Number of Conductors: 1
• Series: KSU
• Torque Rating: 275 in-lb
• Type: Universal
• Width: 0.57 in
