Product Description

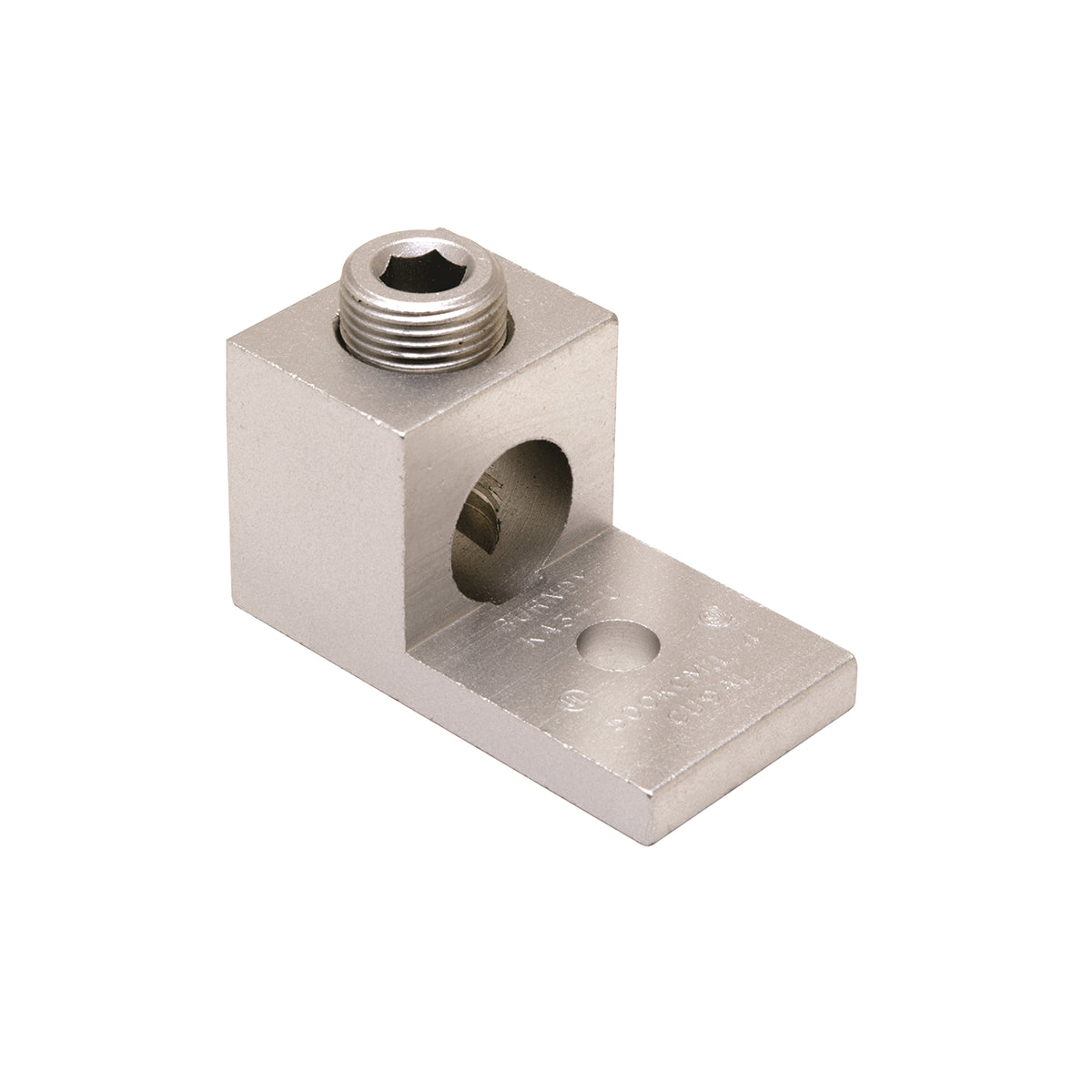

The Hubbell KA40U is a dual rated universal mechanical bolted lug and terminal designed for copper and stranded aluminum conductors. This product supports conductor sizes ranging from three hundred to eight hundred kcmil, making it ideal for various applications in electrical systems.
- Robust aluminum construction
- Electro-zinc plated for enhanced durability
- Single bolt hole design for straightforward installation
Product Highlights
The KA40U provides reliable connections for electrical professionals. Its design allows for efficient installation and maintenance in wiring systems.
Product Information
Standard Information
-
Brand: Hubbell
-
Manufacturer Part Number: KA40U
Technical Specifications
-
Application: For aluminum and copper conductors
-
Conductor Size: 300 to 800 kcmil
-
Conductor Type: Copper/Stranded Aluminum
-
Dimensions: 3.50 inches L x 1.94 inches H
-
Finish: Electro-Zinc Plated
-
Material: Aluminum
-
Number of Bolt Holes: 1
-
Series: KA-U
-
Tongue Size: 1.77 inches W x 0.5 inches THK
-
Tongue Type: Straight
-
Standards/Approvals: RoHS Compliant, AL9CU Rated, CSA Certified, UL 468A/468B, PROP65 Warning applicable
-
Stud Size: 1/2 inch
