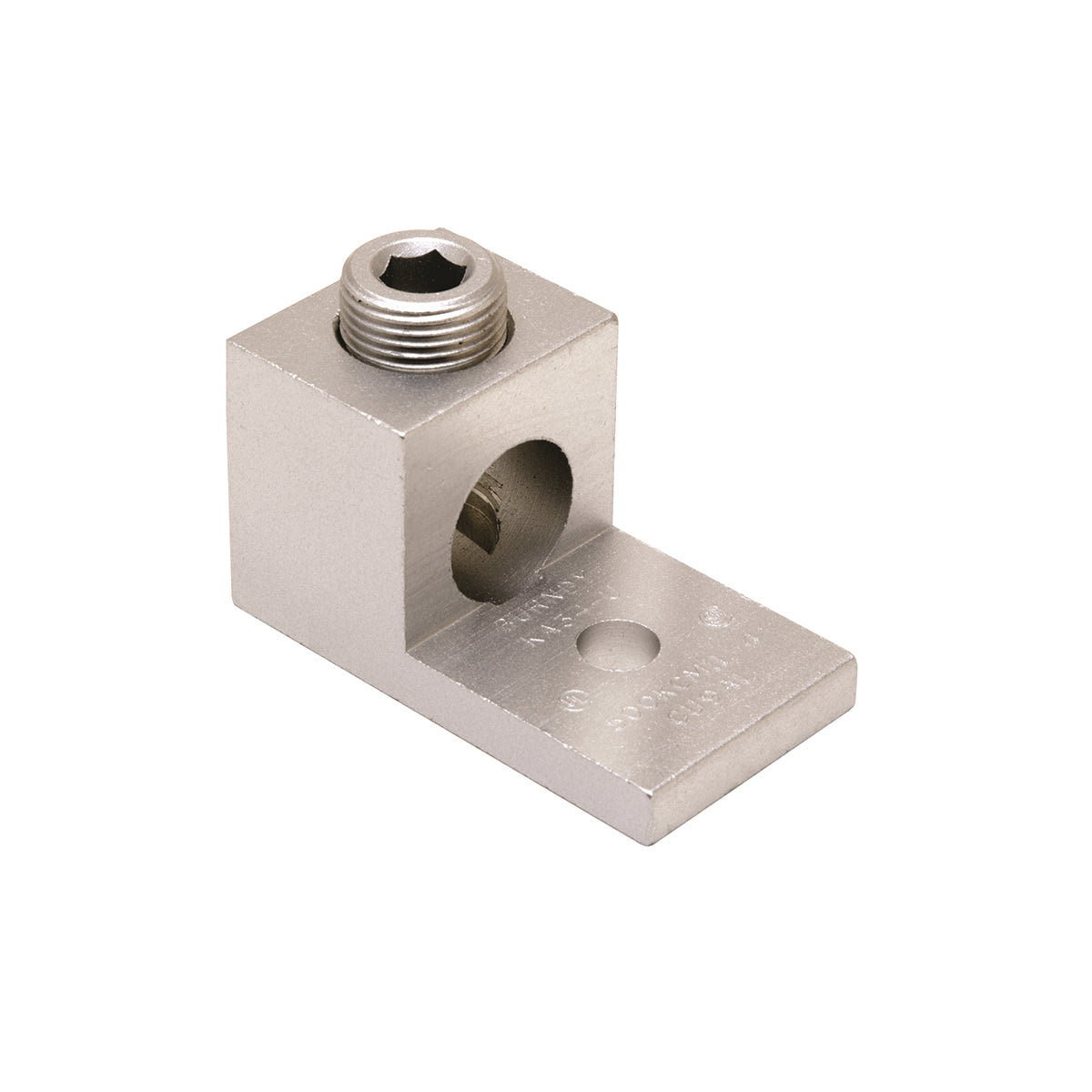

Hubbell KA34U BUR Alum.Term Lug 4Str-500MCM ALCU W/3/8Stud Hole

Product Description

The Hubbell KA34U is a mechanical bolted lug designed for dual-rated connections. It accommodates aluminum and stranded copper conductors ranging from four AWG to five hundred kcmil. The lug features a three-eighth inch stud hole and one bolt hole for secure mounting.

• Designed for aluminum and copper conductors.
• Temperature rating of one hundred ninety-four degrees Fahrenheit.
• Manufactured from aluminum with an electro-TiN coating to reduce contact resistance.

Product Highlights

The KA34U is suitable for a variety of electrical applications including wiring connections and electrical installations that require reliable connections.

Product Information

Standard Information

• Application: For aluminum and copper conductors
• Manufacturer: Hubbell

Technical Specifications

• Conductor Size: 4 AWG to 500 kcmil
• Stud Size: 3/8 in
• Temperature Rating: 194 deg F
• Material: Aluminum
• Dimensions: 2.81 in L x 1.51 in W
• Application Standard: UL 468A/468B, CSA Certified, AL9CU Rated
• Manufacturer Part Number: KA34U
• Finish: Electro-TiN Coated
