Product Description

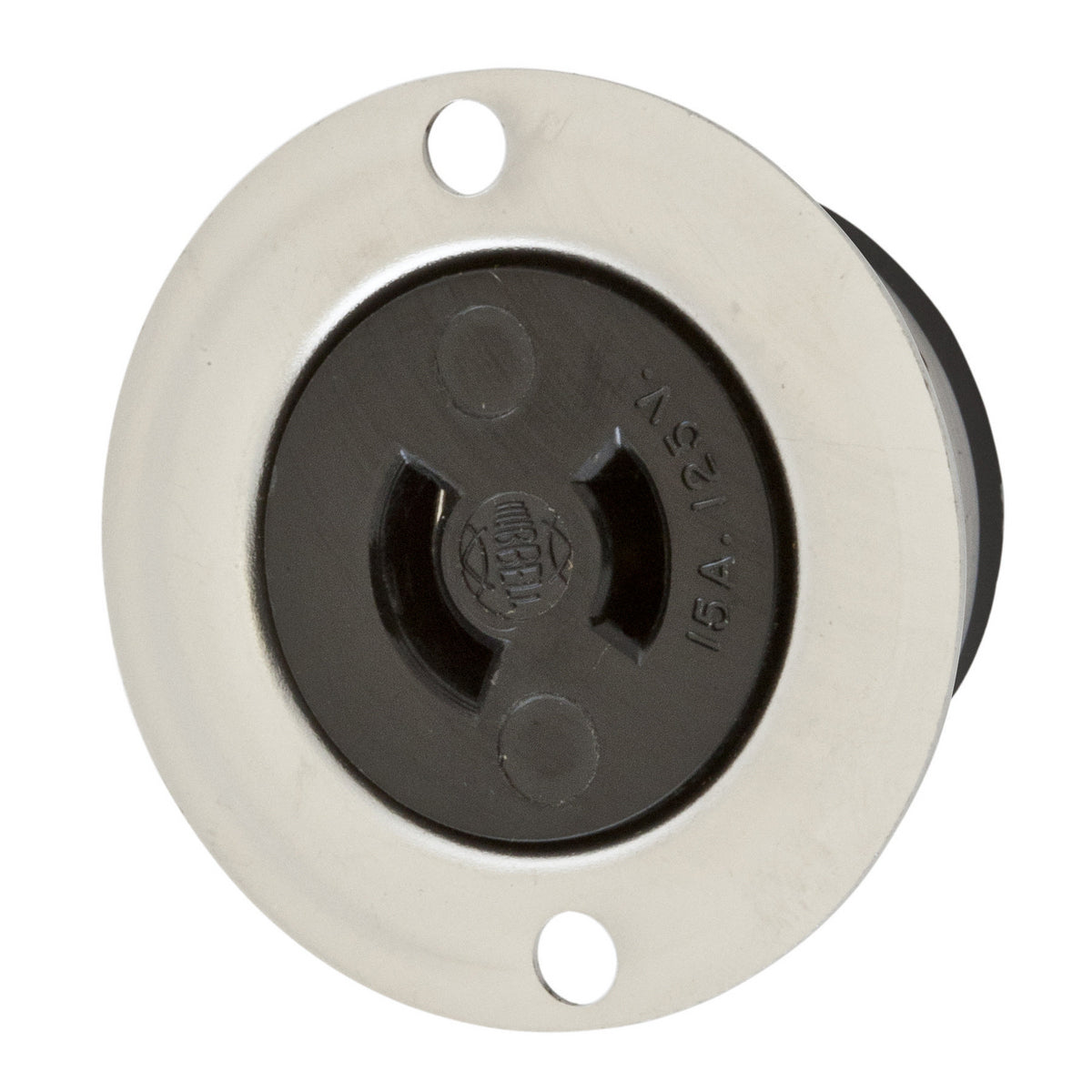

The Hubbell HBL7468 is a heavy-duty non-grounding locking receptacle with two poles and two wires. It operates at a voltage of one hundred twenty-five VAC and has an amperage rating of fifteen A. Designed for industrial applications, this receptacle provides reliable connectivity in demanding environments.
- Constructed to withstand 2000 VAC dielectric voltage
- Features a temperature rating of negative forty to seventy-five degrees Celsius
- Durable nylon and metallic materials for extended use
Product Highlights
This receptacle is suitable for various locking devices, ensuring safety and efficiency in electrical installations.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358523733
Technical Specifications
-
Amperage Rating: 15 A
-
Voltage Rating: 125 VAC
-
Temperature Rating: -40 to 75 deg C
-
Dimensions: 1.63 x 1.63 x 0.78 inches
-
Material: Nylon
-
NEMA Rating: ML-1R
-
Number of Poles: 2
-
Number of Wires: 2
-
Series: HBL
-
Standards/Approvals: UL 498, CSA C22.2 No. 42 Certified, NEMA WD1/WD5, RoHS Compliant
-
Terminal Type: Screw
-
Grade: Industrial
