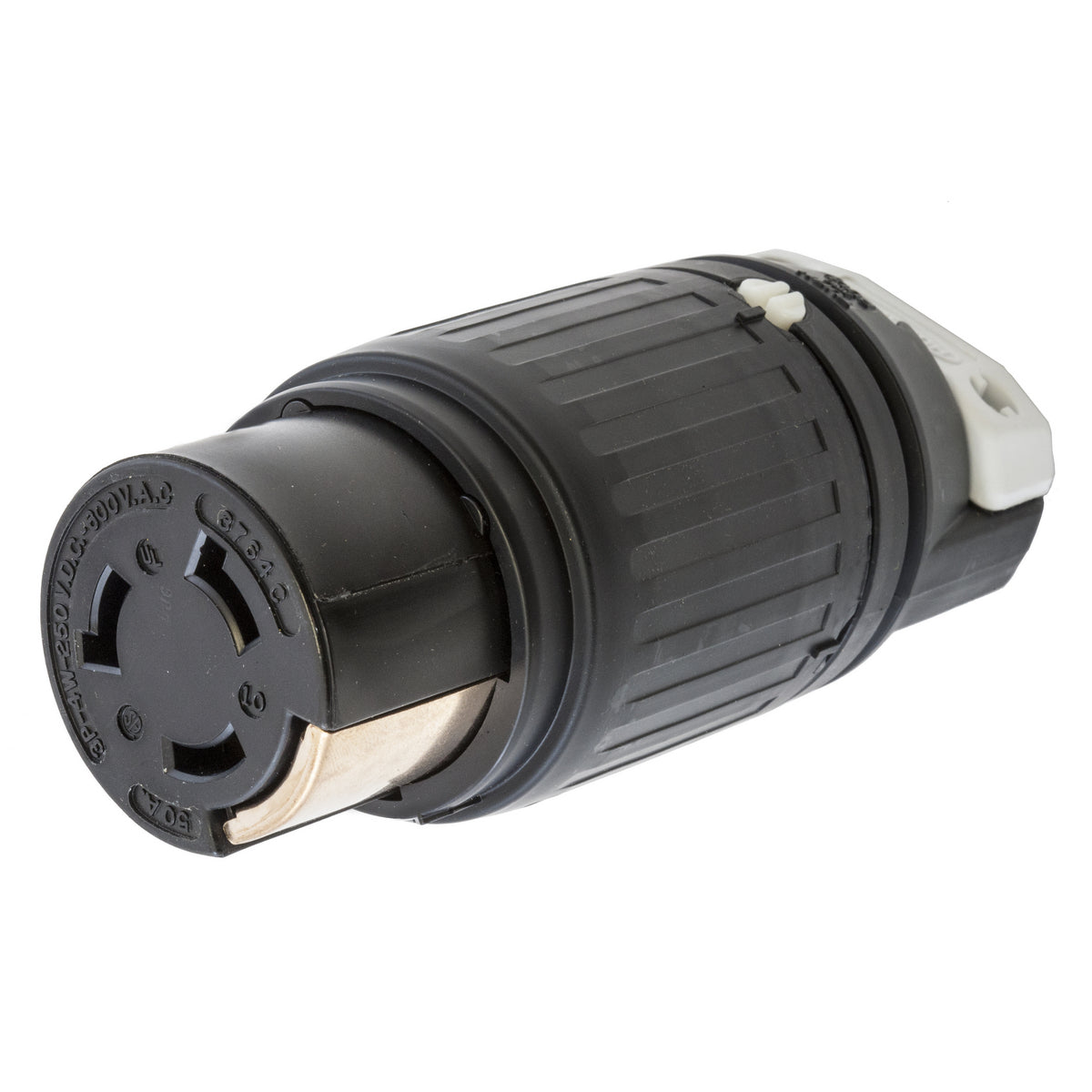

Hubbell HBL3764C HUB 4W TW-LOCK CONN

Product Description

The Hubbell HBL3764C is a grounding heavy duty cord mount locking connector. It is rated for six hundred volts alternating current and two hundred fifty volts direct current, with a capacity of fifty amperes. This device is suitable for three poles and four wires, making it ideal for industrial applications.

• Grounding heavy duty design
• Compatible with cord diameters from three-fourths to one-and-one-eighth inches
• Temperature range of negative forty to seventy-five degrees Celsius

Product Highlights

This connector features a robust design suitable for industrial environments, ensuring reliable performance and safety.

Product Information

Standard Information

• Brand: Hubbell
• MPN: HBL3764C

Technical Specifications

• Amperage Rating: 50 A
• Color: Black/White
• Cord Diameter: 3/4 to 1-1/8 in
• Dimensions: 2.59 x 2.59 x 6.5 in
• Enclosure: IP20
• Grade: Industrial
• Material: Nylon
• Number of Poles: 3
• Number of Wires: 4
• Standards/Approvals: UL 498|CSA C22.2 No. 42 Certified
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Pressure Screw
• Type: Grounding Heavy Duty Cord Mount
• Voltage Rating: 600 VAC/250 VDC
